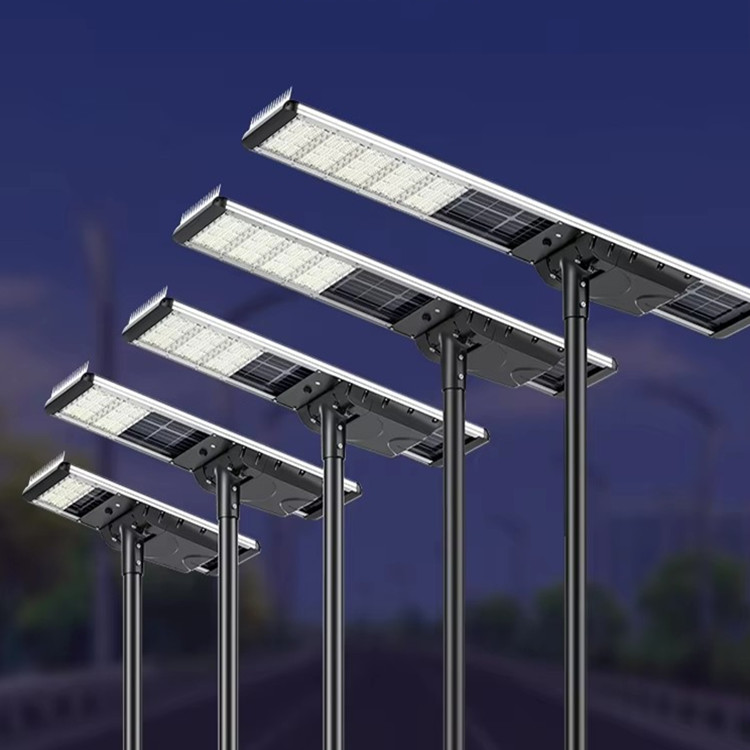

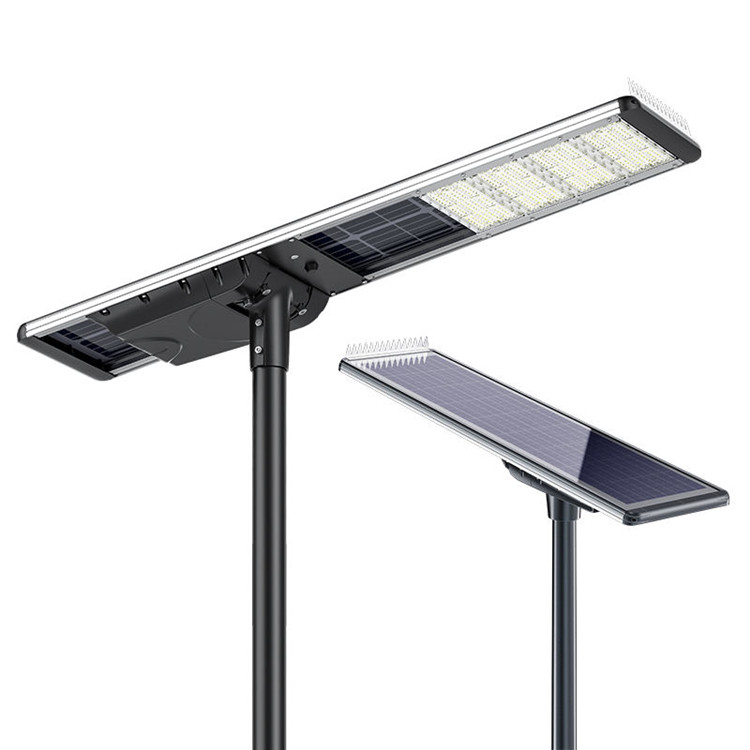

Standard Quality Integrated Solar Street Lights

Standard Quality Integrated Solar Street Lights

High-Performance Integrated Solar Street Light with Intelligent Microwave Motion Sensing

1. Ultra-Sensitive Microwave Detection: Advanced radar sensing technology that detects movement from 10-15 meters, optimizing energy use and extending runtime.
2. Precision Engineering Optics: Professional-grade lens with 140° longitudinal distribution, designed to minimize dark spots and maximize pole spacing.
3. Aerodynamic Aluminum Housing: Die-cast aluminum alloy with vertical convection cooling to prevent heat buildup and protect core electronics.
4. Long-Autonomy Power Bank: High-capacity LiFePO4 battery paired with a monocrystalline solar panel for consistent 365-night operation.
5. Bid-Ready Technicals: Full IES files, Dialux simulation reports, and battery cycle certificates available.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

1. Data-Driven Lighting Precision.
Our custom-engineered optics deliver a rectangular beam pattern optimized for roadway uniformity. By providing high ground lux levels while reducing glare, this series meets international safety standards for residential and municipal roads.
2. Adaptive Intelligent Management.
The integrated microwave sensor is far superior to standard PIR sensors, offering consistent detection regardless of ambient heat. It automatically switches between energy-saving dim mode and full-brightness security mode to ensure 3-5 days of power backup.
3. Industrial Heat Dissipation.
The heavy-duty aluminum chassis features a specialized convection design. This rapid thermal exchange ensures that both the LED chips and the LiFePO4 battery operate within safe temperature ranges, even in tropical climates.
4. Premium Material Integrity.
We utilize A-grade monocrystalline solar cells ($21\%+$ efficiency) and high-efficacy LED chipsets. This combination guarantees faster charging times and a maintenance-free lifespan of over 8-10 years.

Specification

specifications

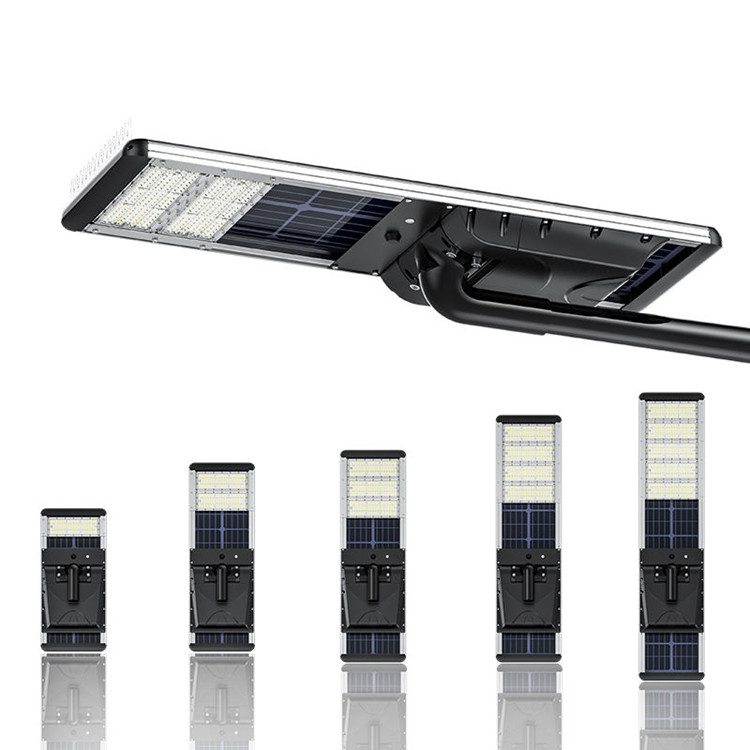

Power	30w	60w	80w	100w	120w	150w
3030 LED chip	120PCS	240PCS	360PCS	480PCS	600PCS	720pcs
Luminous Flux	6600LM	13200LM	17600LM	22000LM	26400LM	33000LM
LiFePO4 Battery	12.8v 24AH	12.8v 36AH	12.8V 48AH	12.8V 60AH	12.8V 72AH	25.6V 36AH
Mono Solar Panel	18V 60W	18V 80W	18V 100W	18V 120W	18V 150W	36V 160W
Install height	4-6M	6-8M	7-8M	8-10M	10-12M	10-12M
Solar charging time	5-6 hours
Material	Aluminum Alloy+ PMMA
Work temperature	-25℃ to 65℃
Warranty	5 Years

Optics

1. LED Chips: 3030 / 5050 high-efficiency LED chips

2. Luminous Efficacy: 160–170 lm/W

3. Beam Angle: Wide-angle light distribution for road coverage

4. Bracket Adjustment: Up to 140° adjustable installation angle

5. Lighting Effect: Uniform illumination, reduced glare, large coverage area

Product Advantages

Lower Infrastructure Costs

The integrated design and wide-angle optics reduce the number of poles required per project, cutting total hardware and labor expenses.
Extreme Weather Reliability

IP65/IP66 rated for dust and water resistance, with a corrosion-resistant coating for long-term outdoor service.
Hassle-Free Maintenance

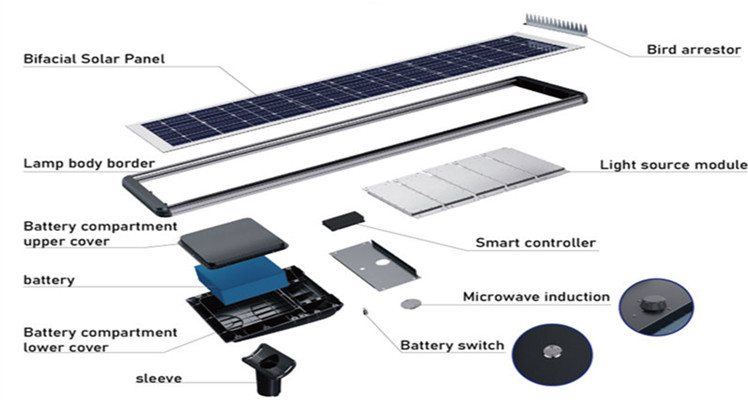

No external wiring and a modular internal structure allow for quick on-site inspections or future battery upgrades.
Tender Compliance Support

We provide all necessary technical submittals, including ISO9001, CE, and RoHS certifications.

Video

Solar Street Lights

Faq

What is the main advantage of Microwave sensors over standard PIR sensors?
+

Microwave (Radar) sensors use electromagnetic waves to detect movement, meaning they are much more sensitive, work at greater distances (up to 15m), and are not affected by high ambient temperatures that often cause PIR sensors to fail.
Can we program the sensor to stay at 100% brightness for the first few hours?
+

Yes. The intelligent controller supports customizable lighting profiles. You can set it to "Full Brightness" for the busy evening hours and "Sensor Mode" for the late-night period to maximize energy conservation.
Do you provide IES files for our engineering team?
+

Absolutely. We offer full IES photometric data for all our models. Our engineering team can also provide a free Dialux simulation to ensure the lux levels meet your project requirements.
How does the "Smart Power Management" work during a week of rainy weather?
+

The controller monitors battery voltage in real-time. If the battery is low, it intelligently dims the base light level while keeping the motion sensor active, ensuring the system remains functional for up to 5 consecutive cloudy days.
Is the battery replaceable after its 5-8 year service life?
+

Yes. The fixture is designed with a modular battery compartment. At the end of its life cycle, the battery can be replaced easily without needing to change the entire LED head or solar panel.
