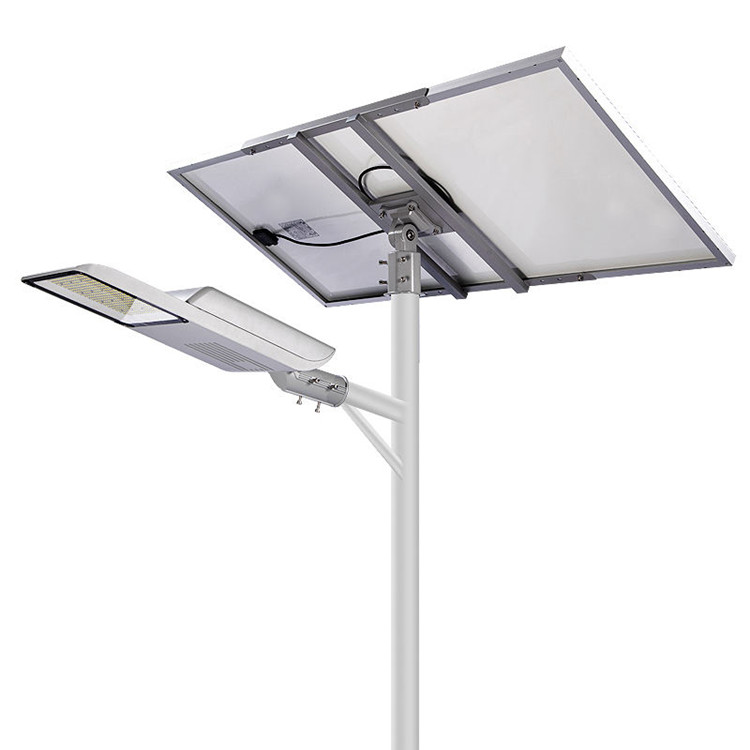

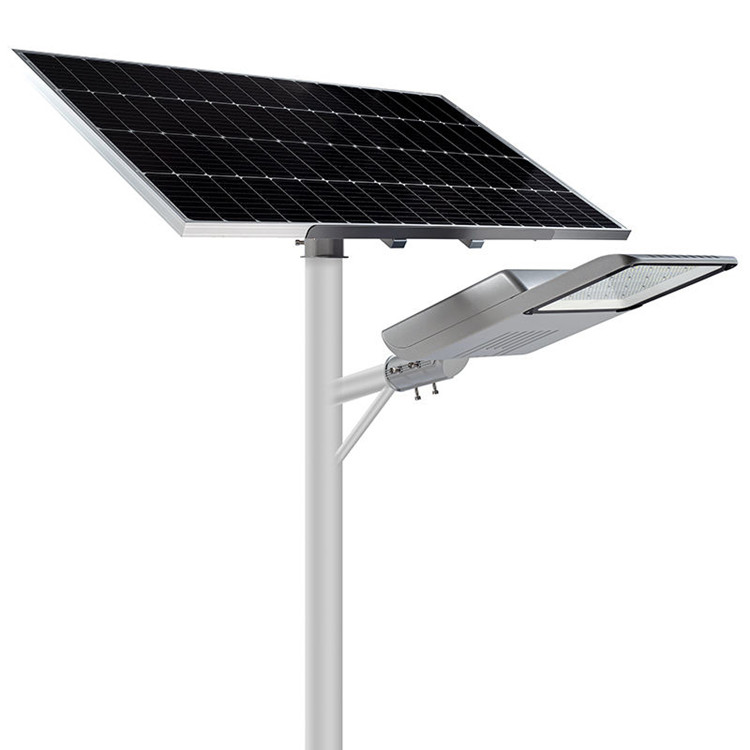

60W, 80W, 100W, 120W split solar street lights

60W, 80W, 100W, 120W split solar street lights

Industrial-Grade 60W–120W Split Solar Street Lights – High-Power Solutions for Highways and Main Roads

1. Maximum Solar Harvest: Detached monocrystalline solar panels with adjustable brackets, ensuring peak energy conversion regardless of pole orientation.
2. Elite Luminaire Performance: High-power LED arrays delivering superior ground lux levels for 6–12 meter mounting heights.
3. Extended Autonomy System: Massive LiFePO4 storage capacity managed by a professional MPPT controller for 5+ days of continuous lighting in rainy weather.
4. Heavy-Duty Thermal Management: Die-cast aluminum light engine with an independent heat-sink design to prevent LED lumen depreciation.
5. Engineering Compliance: Full IES files, wind-resistance calculations, and 5-year project warranties provided.

Inquire

Download

Description
Specification
Advantages
Video
Faq

Description

1. Unrestricted Energy Collection.

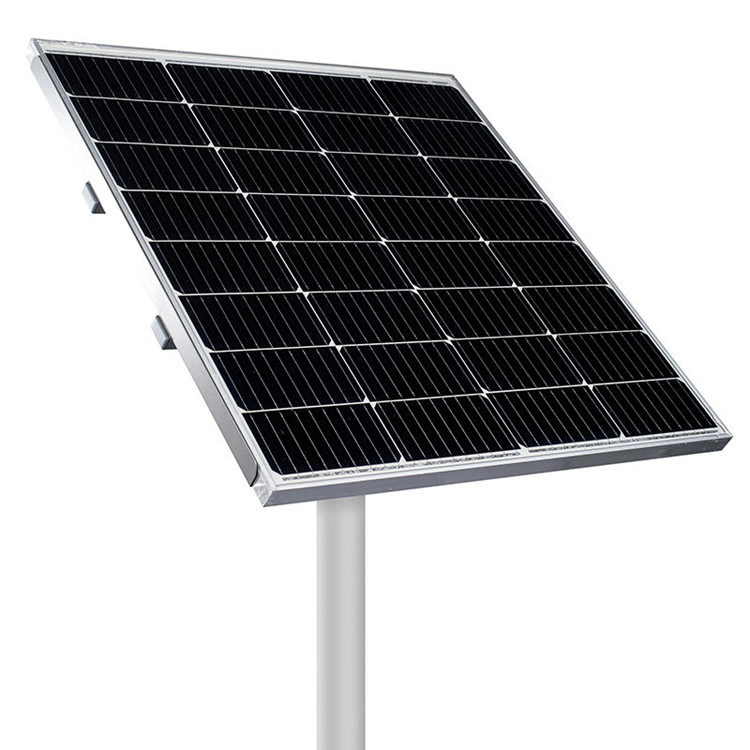

By separating the solar panel from the lamp, we utilize oversized A-grade monocrystalline cells ($21\%+$ efficiency). This allows the system to reach a full charge even in regions with low solar irradiation.
2. Built for Extreme Brightness.

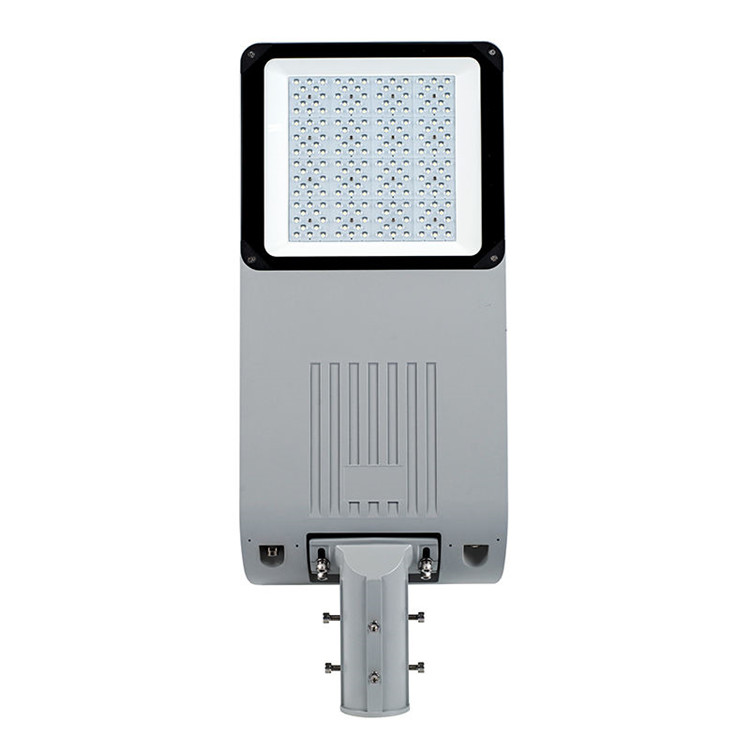

The 120W LED head is engineered for high-traffic roadways. Its aerodynamic, powder-coated aluminum housing ensures rapid heat dissipation, maintaining $50,000+$ hours of peak optical performance.
3. Site-Specific Optimization.
Our heavy-duty split-arm bracket supports independent 360° horizontal and 60° vertical adjustment for the solar panel, guaranteeing maximum sun exposure throughout the year.
4. Zero-Fail Power Delivery.
The system features a large-capacity LiFePO4 battery pack and a smart MPPT controller. This combination delivers a constant, flicker-free light output and protects the system against over-discharging.

Specification

Model	S Series All in TWO Led Solar Street Light
Power	60W 80W 100W 120W
Light Effect	180LM/W
Lamp Chip	4 Core High Light efficiency SMD3030
Input voltage	DC3.2~24V
Product Size	81095320mm,81095320mm,81095320mm,81095320mm
Beam Angle	S2 S3 S4 S5
Luminous	10800LM~21600LM
Protection Level	IP65
Service Life	50000 hours
CCT	2700K~6500K
Materials	Aluminum
Certification	CE, ROHS, IEC, LM79, LM80, IP65, Wind resistance level 10 test, Anti-corrosion WF2 test
Warranty	3~5 Years

Product Advantages

Versatile Application Range

Ideal for major highways, industrial parks, and stadium perimeters where high-intensity lighting is mandatory.
Increased System Lifespan

By separating heat sources (LED and Battery), the system significantly extends the life of internal electronics compared to all-in-one models.
Low Maintenance Design

External battery placement allows for easier inspection and rapid component replacement during long-term service.
Customizable Configuration

We can tailor the battery and panel size to match your specific latitude and project lighting requirements.

Video

Solar Street Lights

Faq

Why choose a Split Solar Street Light over an All-in-One model for highway projects?
+

Split systems allow for larger solar panels and batteries, providing the high wattage (120W) required for main road safety. They also offer flexible panel orientation to maximize charging efficiency in shaded or high-latitude areas.
What is the maximum wind resistance for the 12-meter pole configuration?
+

Our systems are engineered to withstand wind speeds of up to 160 km/h. We provide detailed strength calculation reports for the specific pole and bracket assembly used.
Can these lights be integrated with a 220V AC backup system?
+

Yes. We offer Hybrid Solar-Grid versions that automatically switch to grid power if the battery is depleted during unusually long periods of bad weather.
Do you offer different beam angles (Type II, III, or IV) for the LED lenses?
+

Absolutely. We provide professional roadway lenses designed to meet international standards for uniformity and glare control based on your specific road width.
How do you handle the connection between the panel and the lamp?
+

We use IP67 waterproof MC4 connectors and high-purity copper cables to ensure zero power loss and long-term durability in outdoor environments.
