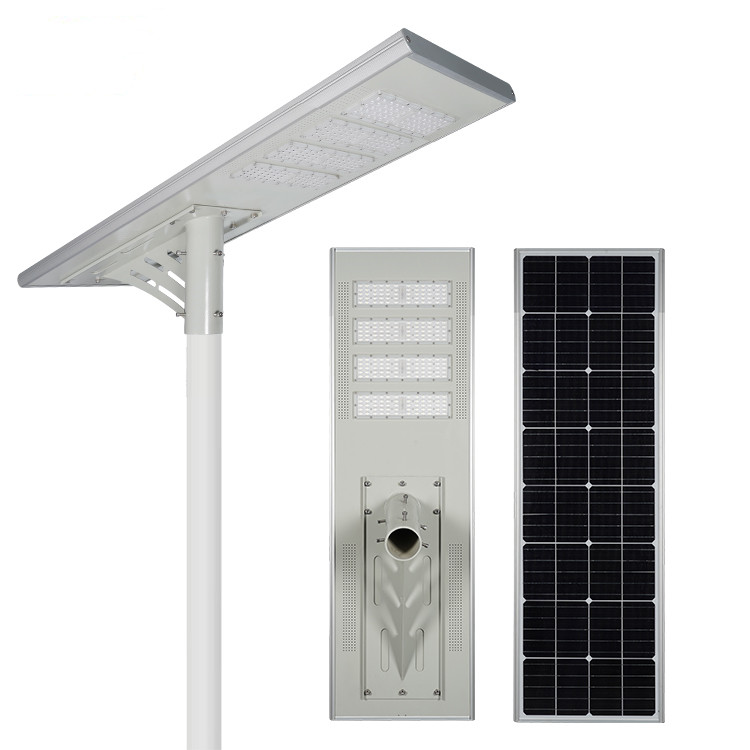

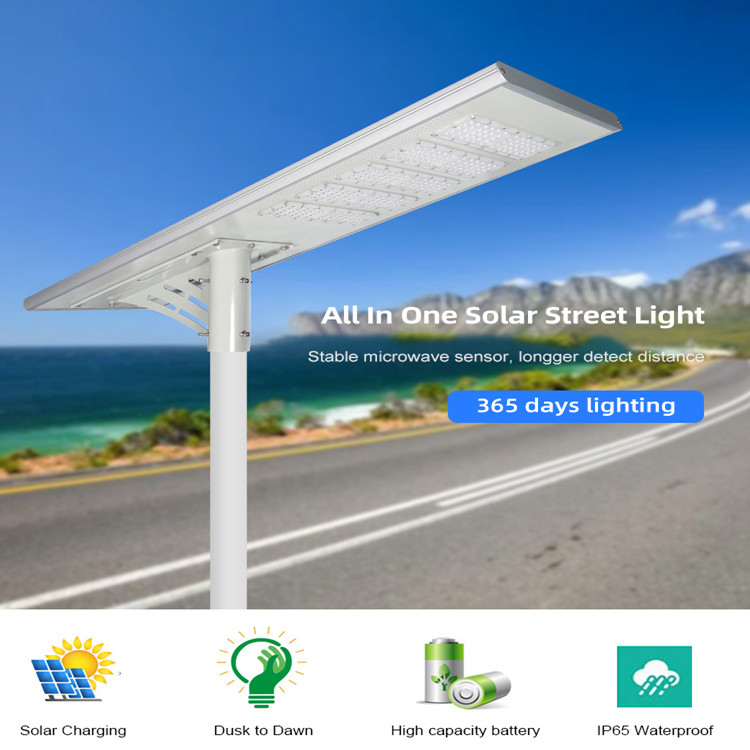

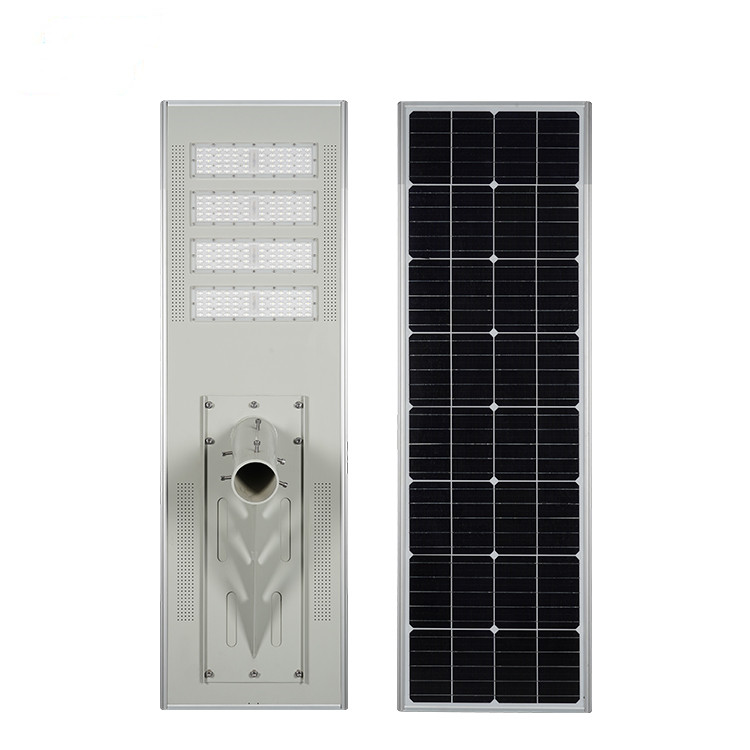

Integrated solar street light outdoor IP67 waterproof high quality aluminum alloy shell

Integrated solar street light outdoor IP67 waterproof high quality aluminum alloy shell

Premium IP67 Waterproof Integrated Solar Street Light – Marine-Grade Aluminum Alloy Housing

1. Military-Grade IP67 Protection: Fully sealed structure designed to withstand temporary submersion and the most severe rainstorms or coastal humidity.
2. High-Purity Aluminum Shell: Optimized for superior thermal management and structural integrity, preventing rust and deformation over a 10-year lifespan.
3. Smart MPPT Energy Management: Maximizes charging efficiency even in low-light conditions, ensuring reliable power delivery 365 nights a year.
4. Advanced Optical Lens: Anti-UV polycarbonate lens provides uniform light distribution while preventing yellowing over time.
5. OEM/ODM Ready: Customized LOGO, specialized CCT, and tender-compliant technical data sheets available.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

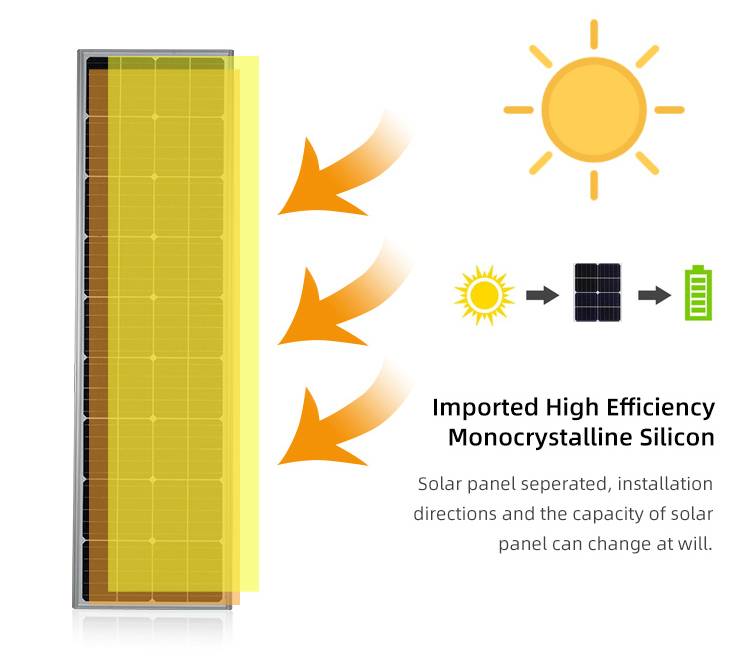

1. Optimized Solar Capture.
Featuring ultra-efficient monocrystalline silicon cells, the system converts sunlight into stored energy at a $21\%+$ rate. This ensures the high-capacity battery reaches a full charge even during shorter winter days.

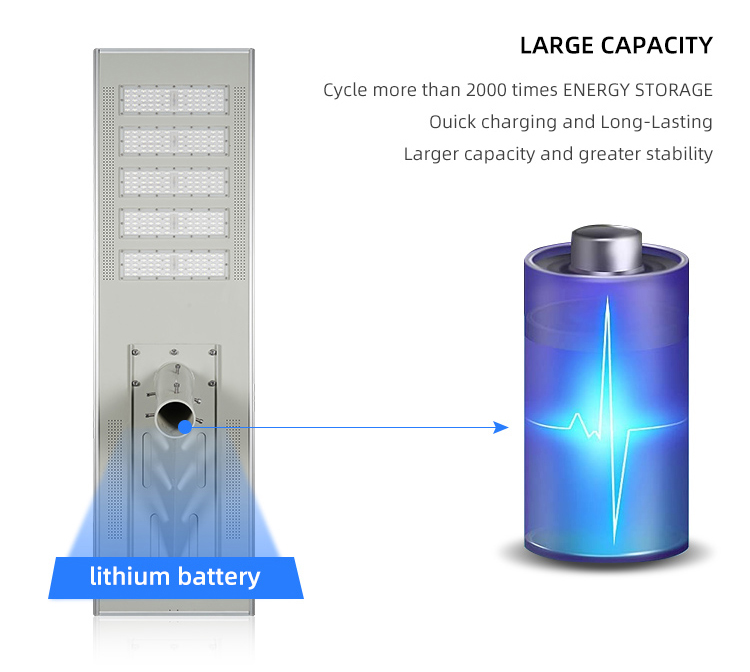

2. Deep-Cycle Power Storage.
Our integrated LiFePO4 battery is managed by a smart BMS, offering 2,000+ charge cycles. It is strategically placed within the aluminum housing to maintain optimal operating temperatures and extend service life.

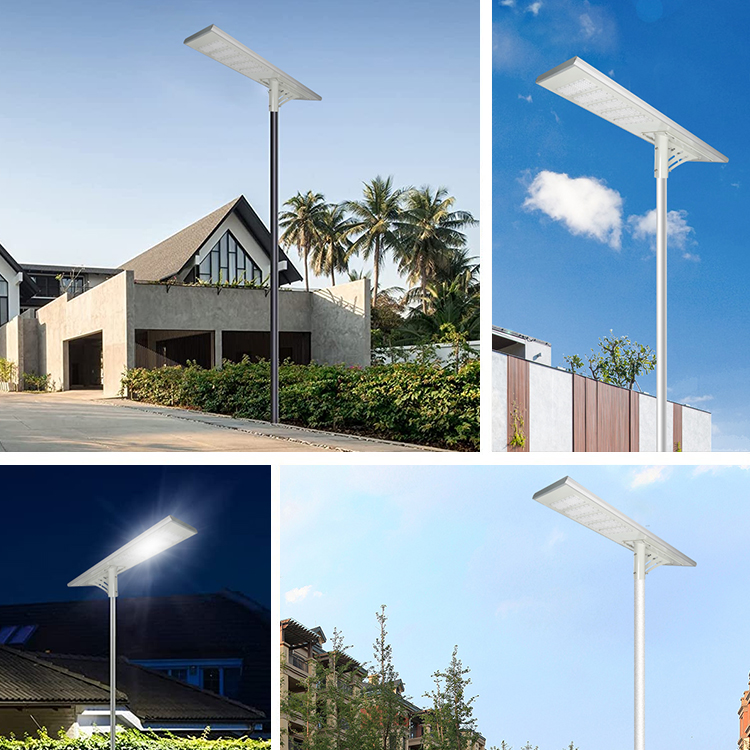

3. Aesthetic & Functional Illumination.
From luxury resort perimeters to municipal parking lots, the sleek design complements modern architecture while providing professional-grade safety lighting that meets international roadway standards.

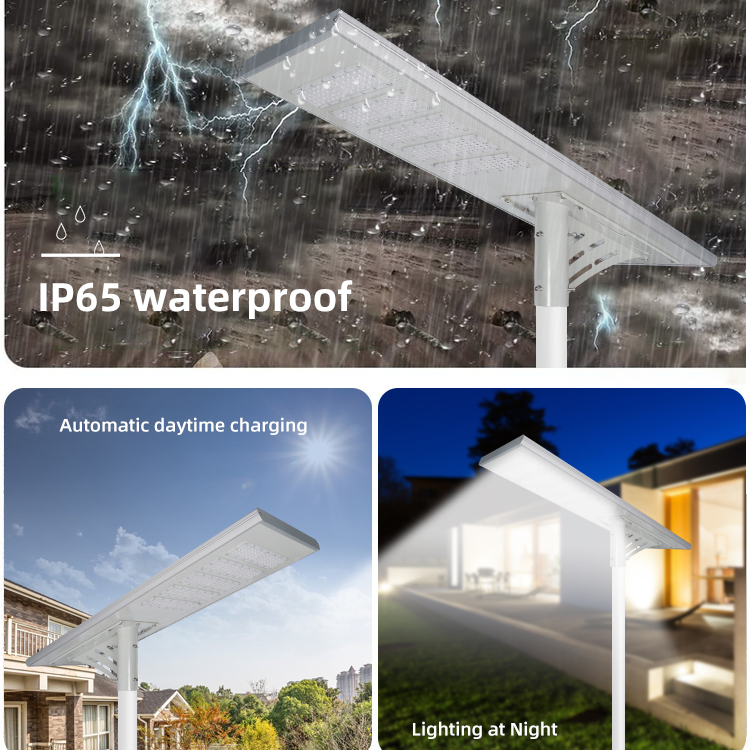

Unrivaled Weather Resistance.
While standard lights stop at IP65, our IP67-rated fixtures are tested against heavy jets and temporary immersion. This makes them the premier choice for typhoon-prone regions and high-humidity environments.

Specification

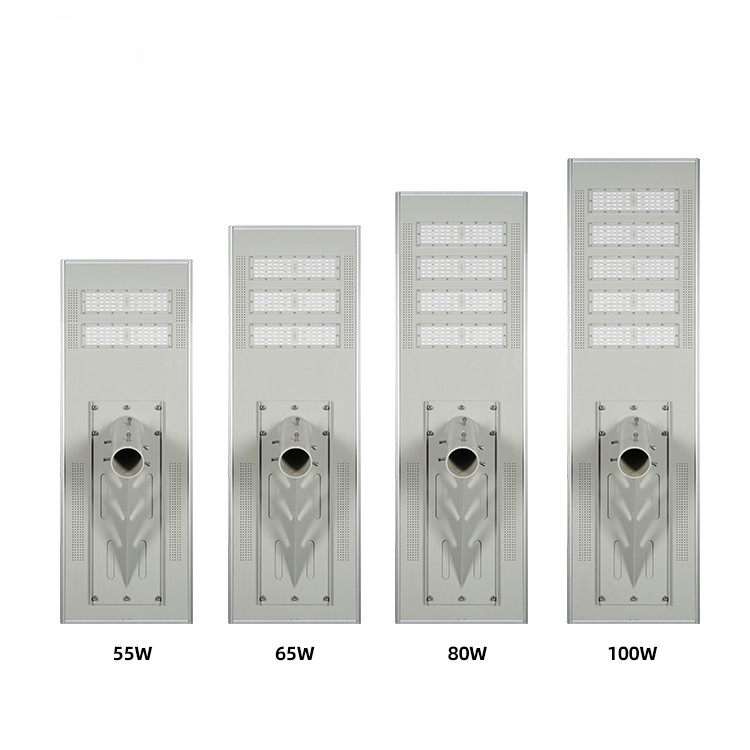

model	watt	size	Solar panels	Lithium battery
HP-Z50W	50W	107830045mm	60W	12.8V30AH
HP-Z60W	60W	107835645mm	80W	12.8V50AH
HP-Z80W	80W	128035645mm	100W	12.8V75AH
HP-Z100W	100W	134045645mm	120W	12.8V80AH

Optics

1. High-lumen LED output up to 160 lm/W

2. Uniform light distribution with reduced glare

3. LED options: 3030 / 5730 / COB

4. Suitable beam angle for road and area lighting

Product Advantages

Marine-Grade Corrosion Resistance

The powder-coated aluminum alloy housing is immune to salt spray, making it perfect for beachfront or island projects.
Zero-Maintenance Design

Integrated "all-in-one" construction eliminates external wiring, reducing potential failure points and lowering long-term OPEX.
Intelligent Dimming Control

Automatically transitions between full brightness and energy-saving modes based on motion detection or time schedules.
Easy Global Logistics

The compact, lightweight design reduces shipping costs and simplifies on-site handling for large-scale deployments.

Faq

What makes IP67 significantly better than IP65 for solar lights?
+

IP67 offers complete protection against dust and can withstand being submerged in water up to 1 meter deep for 30 minutes. This provides a crucial safety margin in areas with flash floods or extreme tropical downpours.
Does the aluminum housing interfere with the sensor or wireless controls?
+

No. Our engineering team has integrated the microwave sensors and remote receivers using signal-transparent materials in specific windows, ensuring 10-15 meters of responsive control range.
Can you provide salt-spray test reports for coastal installations?
+

Yes. Our aluminum alloy housings undergo rigorous 72-hour and 144-hour salt spray testing to ensure they remain corrosion-free in maritime environments.
What is the warranty on the battery vs. the housing?
+

We provide a comprehensive 3-5 year warranty on the entire system, including the LiFePO4 battery, thanks to our advanced BMS protection and robust aluminum casing.
