High-intensity, precision-engineered illumination designed to meet FIFA and professional sports standards. Deliver a superior visual experience for athletes and spectators with flicker-free technology.

1. Arena-Grade Brightness: High-lumen output with exceptional color rendering (CRI >80) for high-definition 4K broadcasting.
2. Flicker-Free Driver: Specifically designed for slow-motion replays and crystal-clear digital capture.
3. Advanced Thermal System: Integrated modular cooling fins to maintain low operating temperatures and ensure 50,000+ hours of service life.
4. Project Ready: Full technical documentation and IES files available upon request to assist in your lighting layout.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

1. Precision Beam Shaping & High Uniformity
Our football field lighting utilizes advanced optical matrices to ensure maximum horizontal and vertical illuminance. By optimizing the beam spread, we achieve high uniformity levels across the entire playing surface, eliminating dark spots and shadows that can hinder athlete performance and referee accuracy. Detailed IES files are available upon request for your Dialux simulation.
2. Modular Engineering & Superior Heat Dissipation

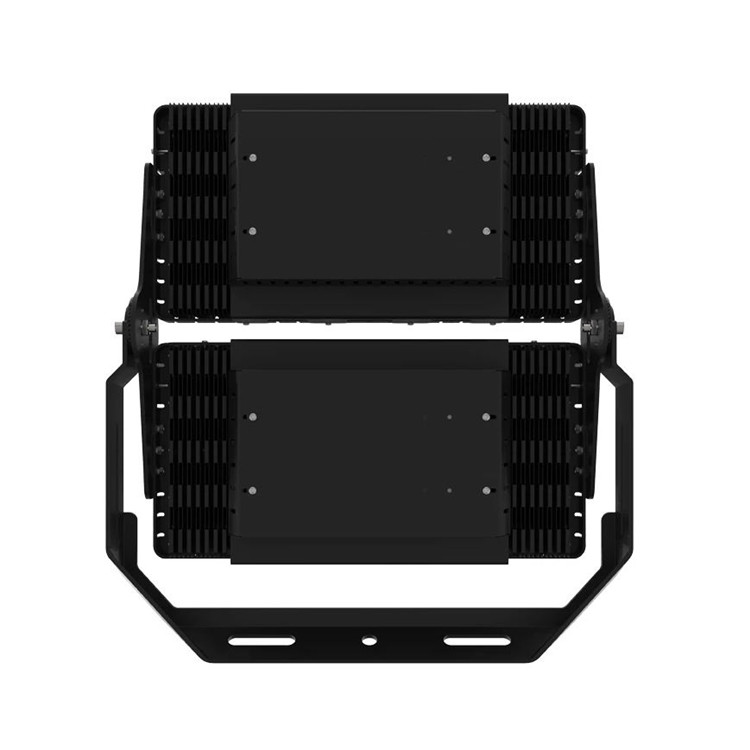

Built for long-term reliability, each stadium light is composed of independent LED modules housed in a high-grade die-cast aluminum frame. The "open-air" convective design accelerates heat dissipation, protecting sensitive electronics and significantly reducing lumen depreciation over time. This modular approach also allows for easy, cost-effective maintenance at the high-mast level.
3. Reinforced Durability & Flexible Aiming
Engineered to withstand high-velocity winds and extreme outdoor weather, the fixture features a heavy-duty U-shaped mounting bracket with a 180° adjustable range. This allows contractors to fine-tune the aiming angle during installation for perfect light distribution. The housing is treated with an anti-corrosion powder coating for maximum salt-spray resistance.

Specification

Product specification

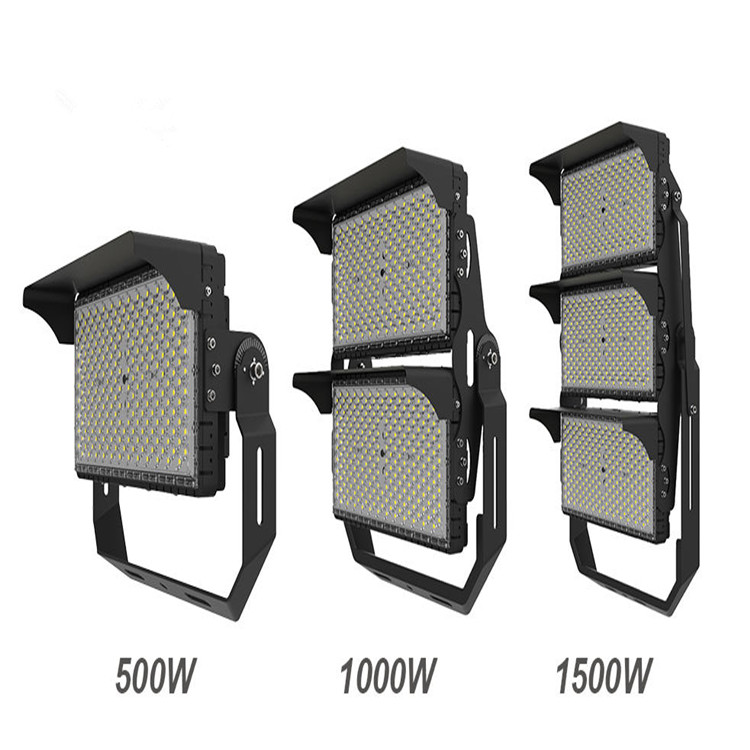

Model No.	HP-W500	HP-W1000	HP-W1500
Rated Power	500W	1000W	1500W
Lumen	75000lm-80000lm	150000lm-160000lm	225000lm-240000lm
Packing size	61x45x30CM	61x68x30CM	65x96x30CM
NetW./Gross W.	12.00KGS/13.50KGS	21.5KGS/24.0KGS	34.0KGS/37.0KGS
Light Efficiency	150-160Lm/W
LED Driver	SOSEN & Inventronics (For other brands, please contact me for a quote）
Input Voltage	AC90-305V(249-528V AC input for option)
PF:	>0.95
IP Grade:	IP66
THD:	10%（at 230v, 50Hz)
LED Parameters

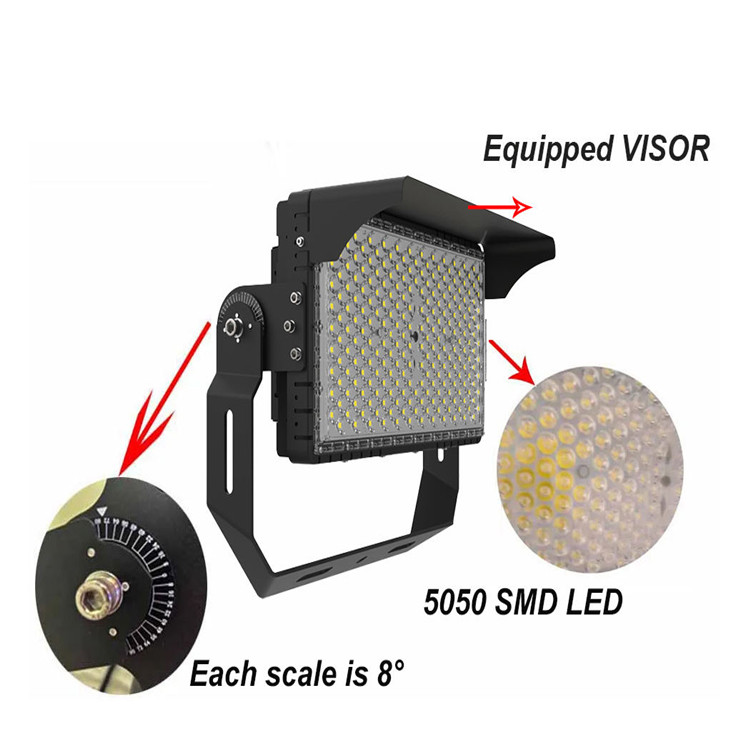

LED chip	5050 SMD LED
Color Temperature	Warm White	Natural White	Cool White
	2700-3200K	4000-4500K/5000-5500K	5700-6500K
CRI	>70Ra or 80Ra

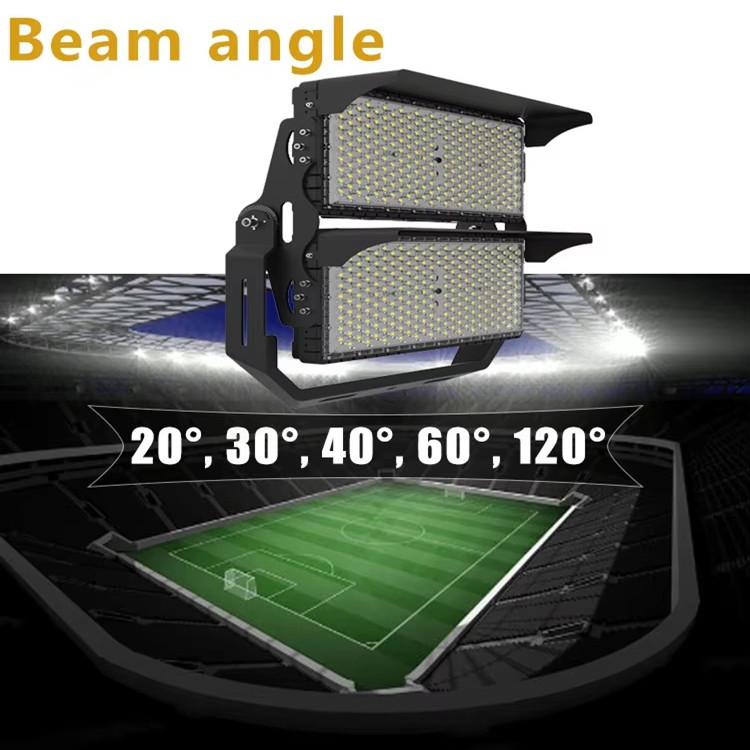

Beam Angle	20°, 30°, 40°, 60°, 120°
Mechanical Specification
Body Material	Aluminum
Surge protection	L/N-PE: 10KV, L-N: 6KV; 20KV version is for option.
Body color	Black
Operating Temperature	-35℃ - 50℃
Warranty	5 years warranty
Certificates	CE, RoHS, SAA, TUV, CB, ERP, LM79, LM80, IK10, IP66

Optics

Our stadium lighting optics feature optical-grade lenses that prioritize light utilization and spill-light control.

1. Asymmetric Distribution: Directs light precisely onto the field, protecting the surrounding environment from light pollution.

2. Anti-Glare Technology: Reduces UGR (Unified Glare Rating) to improve visibility for players and the audience.

3. IES Data Support: We understand that professional fields require precise calculations; IES files are available upon request to guarantee your project meets lux level requirements.

Product Advantages

Broadcast Standard Compliance

Meets the stringent TLCI and flicker-free requirements for modern HDTV sports coverage.
Energy Efficiency

Delivers up to 60% energy savings compared to traditional metal halide lamps while providing superior lux levels.
Smart Dimming Ready

Optional 1-10V, DALI, or DMX control systems for dynamic lighting scenes and event-based power management.
Complete Technical Service

We provide more than hardware; we offer full simulation support and our IES files are available upon request.

Faq

Do you provide Dialux simulations for football stadium projects?
+

Yes, our engineering team offers professional lighting design services. To help your designers, we have comprehensive IES files available upon request for all our high-brightness LED stadium lamps.
Is this lighting suitable for high-speed camera slow-motion replays?
+

Absolutely. Our drivers are engineered with flicker-free technology to ensure seamless capture during slow-motion playback at professional sports events.
What mounting options are available for high-mast installation?
+

Each unit comes with a heavy-duty adjustable bracket. We can also provide customized mounting plates to match your existing stadium poles or high-mast structures.
How do your lights handle harsh weather or high-altitude winds?
+

These professional field lights are IP66-rated and IK10-tested. The aerodynamic modular design significantly reduces the Effective Projected Area (EPA), ensuring safety during storm-force winds.
