Industrial IP68 Waterproof Integrated Solar Street Light – High-Lumen COB Optical Technology

1. Ultimate Protection: IP68 certified fully sealed structure, designed for 100% water and dust-proof performance in hurricane-prone and coastal regions.
2. Next-Gen COB Optics: High-efficacy COB/MCOB LED light source (160-170 lm/W) delivering uniform, low-glare illumination for enhanced road safety.
3. Ultra-Wide Coverage: Custom 140° wide-angle lens allows for wider pole spacing, significantly reducing total project hardware costs.
4. Smart Energy Management: Intelligent MPPT controller with remote management to optimize battery life and lighting autonomy.
5. Bidding Support: Complete technical data sheets, IP68 test reports, and Dialux lighting simulations provided for international tenders.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

1. Unrivaled Reliability in Extreme Weather.
Our IP68-rated housing ensures the internal LiFePO4 battery and smart controller remain bone-dry even under prolonged water immersion or heavy monsoon rains. This is the ultimate "install-and-forget" solution for humid tropical climates.
2. Superior Visual Comfort with COB Technology.
Unlike standard LEDs that cause distracting "hot spots," our COB lamp beads produce a soft, uniform light distribution. This minimizes eye fatigue for drivers and meets the highest municipal standards for light quality.

Specification

model	watt	size	Solar panels	Lithium battery
HP-D45W	45W	99236480mm	45W6V	3.2V50AH
HP-D65W	65W	114036480mm	65W6V	3.2V60AH
HP-D80W	80W	126036480mm	80W6V	3.2V75AH

Optics

1. Light Source: Specialized COB/MCOB LED for high-density lumen output.

2. System Efficiency: Reaching 160-170 lm/W, maximizing brightness per watt of solar power.

3. Color Precision: Available in 3000K (Warm), 4000K (Natural), and 6000K (Daylight) to match specific project requirements.

Product Advantages

Lower Project TCO

The 140° beam angle means fewer poles are required per kilometer, lowering your total cost of ownership.

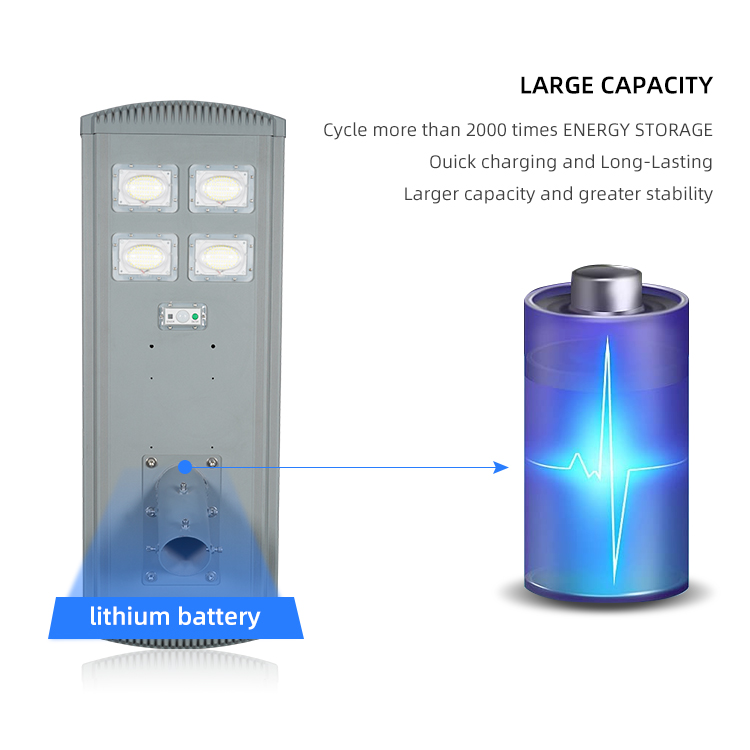

Long-Cycle LiFePO4 Storage

High-safety lithium batteries paired with IP68 sealing extend the system life to over 8-10 years.
Adaptive Intelligence

Built-in sensors automatically adjust output based on battery levels, ensuring light throughout the night even in cloudy seasons.
Corrosion-Resistant Housing

Precision-cast aluminum with specialized coating protects against salt spray and industrial pollutants.

Faq

What is the real-world benefit of IP68 over the standard IP65 rating?
+

While IP65 is splash-proof, IP68 is designed for total immersion and high-pressure water resistance. For municipal projects in coastal or high-monsoon areas, IP68 prevents the "internal fogging" and corrosion that typically lead to 80% of solar light failures.
Why choose COB/MCOB over standard SMD lamp beads?
+

COB (Chip on Board) offers a much more uniform light surface. It eliminates glare and provides a "soft-start" visual experience, which is increasingly required for high-end residential and municipal road lighting tenders.
How does the IP68 seal affect battery heat dissipation?
+

Our engineering team utilizes a high-conductivity aluminum housing as a giant heat sink. The heat is dissipated through the external fins, ensuring the battery stays within safe operating temperatures despite being fully sealed.
Can I adjust the brightness and cleaning cycles via remote control?
+

Yes. Every unit comes with a professional-grade remote that allows you to set customized timing, dimming levels, and motion sensor modes to meet different road traffic needs.
Do you provide certification support for government projects?
+

Absolutely. We provide CE, RoHS, IP68 test reports, and can assist with the technical documentation and Dialux simulations required to pass municipal project inspections.
