Integrated Solar LED Street Light with Timed Automatic Cleaning

Integrated Solar LED Street Light with Timed Automatic Cleaning

Intelligent Self-Cleaning Integrated Solar Street Light – The Ultimate Maintenance-Free Solution for Dusty Environments.

1. Patented Auto-Brush System: Features a programmable, heavy-duty cleaning brush that removes dust, sand, and bird droppings daily.
2. Efficiency Recovery: Restores up to $98\%$ of solar panel efficiency, ensuring the LiFePO4 battery reaches full charge even in arid climates.
3. Industrial-Grade Reliability: Powered by a high-torque, brushless motor designed for $3,000+$ cleaning cycles (8–10 years lifespan).
4. High-Lumen 3030 Chips: Delivers powerful, uniform illumination optimized for municipal road safety standards.
5. Project Submittal Ready: Detailed performance reports, energy-saving calculations, and CE/RoHS certifications available for tenders.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

1. Uninterrupted Energy Harvesting.

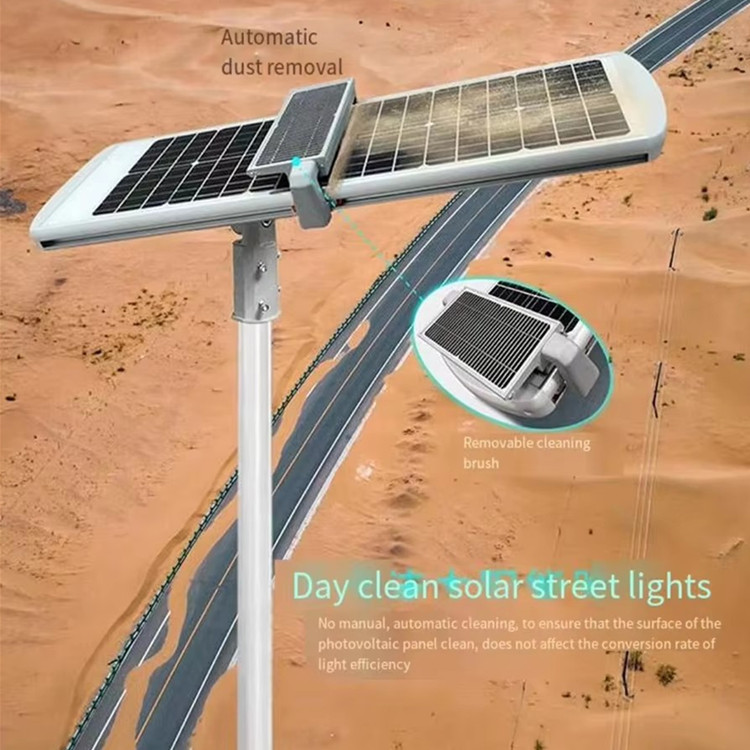

In desert or high-pollution areas, dust accumulation can reduce solar intake by $40\%$. Our built-in automatic brush performs a double-pass cleaning at scheduled intervals (timed via smart controller), ensuring your system always operates at peak performance.
2. Advanced Roadway Distribution.
Utilizing 3030 high-efficiency lamp beads, the optical lens is engineered to spread light evenly across multi-lane roads, eliminating dark spots and reducing glare for drivers.
High-Capacity Energy Storage.
Integrated with a high-density LiFePO4 battery pack and an MPPT controller, this system provides 3–5 days of autonomy, even if the panel is temporarily obscured during a sandstorm.

Specification

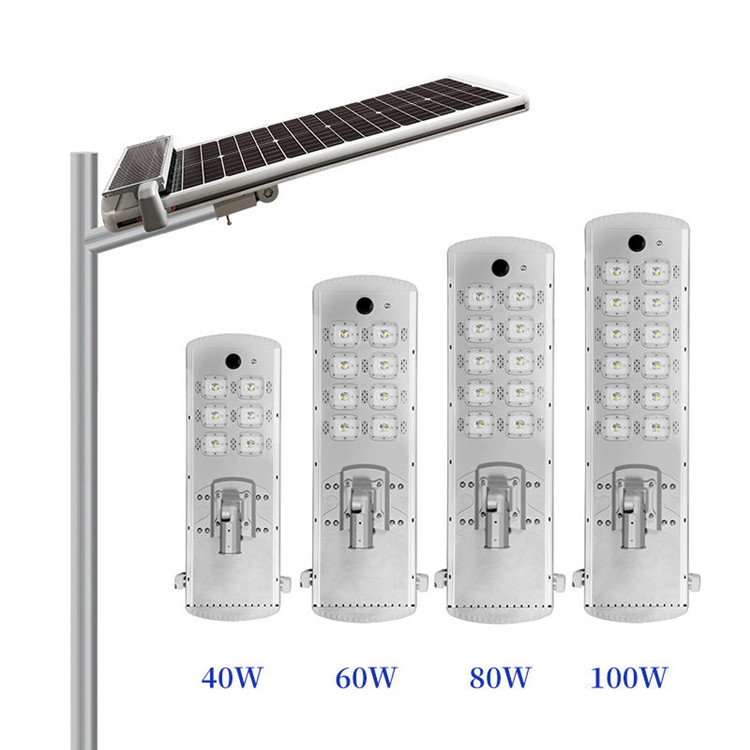

model	watt	size	Solar panels	Lithium battery
HP-C60W	40W	*990455125mm*	60W	LiFePO4 12.8V /24Ah
HP-C80W	60W	*1230455125mm*	80W	LiFePO4 12.8V /36Ah
HP-C100W	80W	*1540455125mm*	100W	LiFePO4 12.8V /48Ah
HP-C120W	100W	*1860455125mm*	120W	LiFePO4 12.8V /64Ah

Optics

1. LED Lens: Private model lens with optical refraction for uniform glare-free lighting

2. Luminous Efficiency: 220 lm/W

3. Light Distribution: Wide-angle, uniform road illumination

4. Adjustable Angle: 140° mounting adjustment

5. Lighting Effect: High uniformity, low glare, large-area coverage

Product Advantages

Zero Maintenance Costs

Eliminate the need for expensive high-altitude cleaning crews and specialized equipment, significantly reducing the Total Cost of Ownership (TCO).
Smart Adaptive Cleaning

The system can be programmed to clean at dawn, dusk, or specific intervals based on local environmental conditions.
Superior Heat Dissipation

The integrated aluminum alloy housing protects sensitive electronics while allowing passive cooling to extend battery life.
Extreme Climate Endurance

Rated for IP65/IP66, the self-cleaning mechanism remains functional in temperatures ranging from $-20\text{°C}$ to $+65\text{°C}$.

Video

Solar Street Lights

Faq

How do we set the cleaning frequency for different locations?
+

The cleaning cycle is managed by the integrated smart controller. It can be preset to run daily or every few days, depending on the severity of dust in your region.
What happens if the brush gets stuck or encounters heavy snow?
+

The system features an intelligent torque sensor. If an obstruction is detected, the motor will automatically stop and retry to prevent mechanical damage.
Can the cleaning brush be replaced once it wears out?
+

Yes. The brush is designed as a modular component. It can be easily swapped out by a technician during routine multi-year inspections without disassembling the entire lamp.
Does the cleaning process consume a lot of battery power?
+

Not at all. A single cleaning cycle consumes less than $0.5\%$ of the battery's total capacity, which is a tiny trade-off for the $30\% \text{--} 50\%$ gain in charging efficiency.
Is the self-cleaning system effective against sticky debris like bird droppings?
+

Yes. Our high-density fiber brush is specifically designed to sweep away both loose sand and stubborn bird droppings, maintaining a clear path for solar rays.
