9m Heavy-Duty Hot-Dip Galvanized Street Light Poles (Q235B Steel) – 20-Year Anti-Corrosion Guarantee

1. Premium Material Integrity: Manufactured from certified Q235B high-grade steel, offering superior structural stability and mechanical strength for high-mast applications.
2. Deep-Zinc Galvanization: Processed through hot-dip galvanizing (inside and outside) according to ISO standards, ensuring maximum protection against rust in coastal and humid climates.
3. Certified Wind Resistance: Engineered to withstand Level 12 typhoons, providing ultimate safety for municipal roads and highways.
4. Precision Automatic Welding: Continuous longitudinal welding with smooth finishes, ensuring no weak points in the pole's structure.
5. Project Documentation: Full CAD drawings, welding certificates, and galvanization thickness reports available upon request.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

1. Large-Scale Production & Rapid Lead Times
With a massive inventory of standardized Q235B steel sections, we support large-scale municipal tenders with fast delivery. Our facilities are equipped for volume production, ensuring that your project schedule is met without compromising on quality standards.

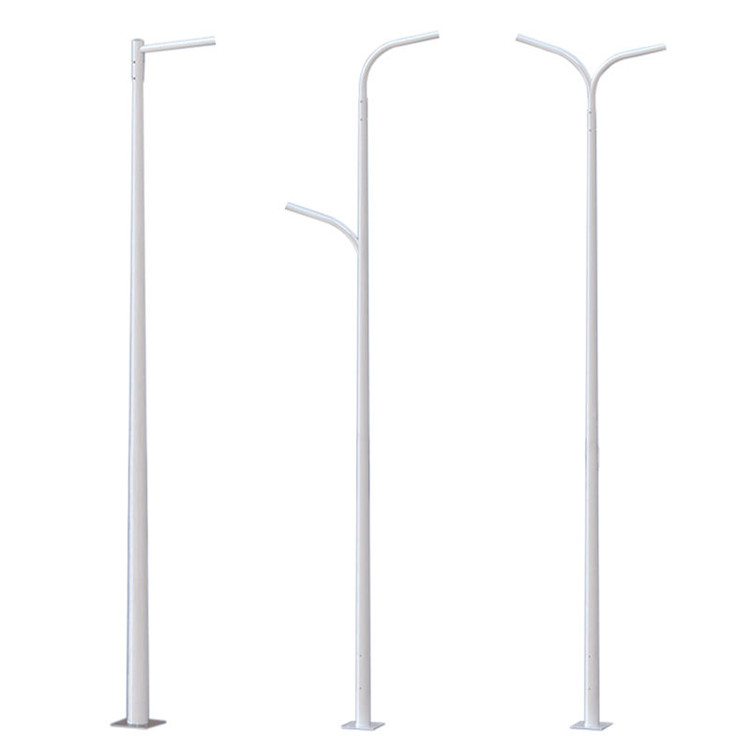

2. Versatile Bracket & Arm Configurations
Our poles support single, double, or customized multi-arm configurations to accommodate both LED and solar street lighting fixtures. The access door is precision-cut and reinforced to allow easy electrical maintenance while maintaining the pole's structural integrity.
Dual-Layer Protection: Galvanization + UV-Resistant Powder Coating
Beyond hot-dip galvanizing, we offer professional electrostatic powder coating in any RAL color. This dual-layer protection significantly extends the pole's lifespan and maintains its aesthetic appeal under intense UV exposure.

Specification

Height	4M	5M	6M	7M	8M	9M	10M	11M	12M
Top diameter	60mm	60mm	60mm	70mm	70mm	75mm	75mm	75mm	90mm
Bottom diameter	140mm	140mm	140mm	155mm	155mm	175mm	190mm	190mm	195mm
Thickness	2-3.5mm	2-3.5mm	2-3.5mm	3-3.5mm	3-3.5mm	3-4mm	3-4mm	4-5mm	4-5mm
Base plate	12260260mm	12260260mm	12260260mm	14280280mm	14280280mm	16350350mm	16350350mm	18400400mm	18400400mm
Hot dip galvnaized	≥80um	≥80um	≥80um	≥80um	≥80um	≥80um	≥80um	≥80um	≥80um
Powder coating	≥80um	≥85um	≥85um	≥85um	≥85um	≥85um	≥85um	≥85um	≥85um
All of pole could be customized

Optics

1. Our street light poles are ISO9003 certified and we manufacture a variety of solar street light poles, including high poles, garden lights, surveillance poles, stadium lighting poles, airport lighting poles, floodlights, and road light poles.

2. These poles are widely used in applications such as plazas, airports, municipal roads, garden lighting, farms, surveillance camera poles, signage poles, and traffic signal poles.

3. Our product range includes octagonal poles, tapered round poles, square poles, poles of varying diameters, and removable poles. Our products are guaranteed for five years.

4. All light poles are hot-dip galvanized street light poles and galvanized solar street light poles

Product Advantages

Industrial Durability & Longevity

Our hot-dip galvanized finish provides a maintenance-free lifespan of over 20 years, even in highly corrosive industrial or maritime zones.
Engineering-Grade Precision

Every pole is designed according to local wind load requirements, using advanced CAD modeling to ensure perfect alignment and stability.
High-Volume Supply Chain

As a direct manufacturer, we offer competitive pricing and flexible shipping solutions for bulk orders of galvanized street light poles.
Full Technical Compliance Support

We provide all necessary technical submittals for government projects, including material test reports and structural calculations.

Faq

What is the average zinc thickness of your hot-dip galvanization?
+

We adhere to international standards, typically providing a zinc coating thickness of 85μm or more, ensuring long-term rust resistance.
Can these 9m poles be shipped in containers efficiently?
+

Yes. For 9-meter and 12-meter poles, we offer telescopic/slip-joint designs that allow sections to fit inside standard containers, significantly reducing international ocean freight costs.
Do you provide the anchor bolts and foundation templates?
+

Absolutely. Each pole set can be supplied with J-bolts, nuts, and a positioning template to ensure a seamless on-site installation process.
