High-Power IP67 Aluminum Integrated Solar Street Light – Industrial-Grade 200W-500W Wholesale for Municipal Projects.

1. IP67 Ultimate Protection: Fully sealed structural design ensures reliable operation in high-humidity, coastal, and flood-prone regions.
2. Aviation-Grade Die-Cast Aluminum: One-piece housing offers superior thermal management, effectively extending the lifespan of internal LiFePO4 batteries.
3. Ultra-High Luminous Efficacy: Delivers up to 180 LM/W using premium SMD3030 chips, ensuring maximum brightness for roadway safety.
4. Advanced MPPT Intelligence: Next-generation controller optimizes energy harvesting even on heavily overcast days.
5. Customizable for Tenders: Full technical support, IES files, and customized branding available for bulk wholesale orders.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

1. Built for the Harshest Environments.
The integrated die-cast aluminum body is treated with anti-corrosion coating, preventing rust and heat buildup. Unlike plastic models, this chassis maintains its structural integrity for 25+ years.
2. Maximum Road Visibility.
Our high-transmittance optical lenses provide a wide-angle beam with minimal light decay, ensuring uniform ground illumination that meets international street lighting standards.
3. Rapid Solar Harvesting.
High-efficiency monocrystalline silicon panels paired with an intelligent MPPT controller ensure the system reaches a full charge in just 6-8 hours of sunlight.

Specification

Model

HP-S012

Power

200W

300W

400W

500W

Size(mm)

700*350*150

887*400*280

1160*400*280

1435*400*280

Light Source

SMD3030 100pcs

SMD3030 180pcs

SMD3030 240pcs

SMD3030 300pcs

Module

2 Module

3 Module

4 Module

5 Module

Solar Panel Power

5V 45W

5V 70W

5V 90W

5V 110W

Capacity

145wh

208wh

320wh

400wh

Installation height

6-7m

9-10m

Luminous Flux(LM)

150-160LM/W

Service Life

50000h

Material

LiFePo4 Battery

Charging Time

full sunshine 6-8h

Temperature

-20℃～60℃

Rainy days

3-7 days

Material

Aluminum

Solar Panel

Hight Efficiency Solarworld Monocrystalline Silicon

Optics

1. High-transmittance optical lens design minimizes light loss and maximizes road surface illumination efficiency.
2. Professional light distribution provides uniform brightness and reduced glare for safer night driving and pedestrian visibility.
3. Available color temperatures include 3000K / 4000K / 6500K to suit different road and environmental requirements.
4. IES files and DIALux lighting simulation support are available to assist with lighting layout, pole height and road width calculations for engineering projects.

Product Advantages

Lower Maintenance Ratio

The IP67 rating and aluminum heat dissipation significantly reduce post-installation service calls, lowering the Total Cost of Ownership (TCO).
Scalable Power Options

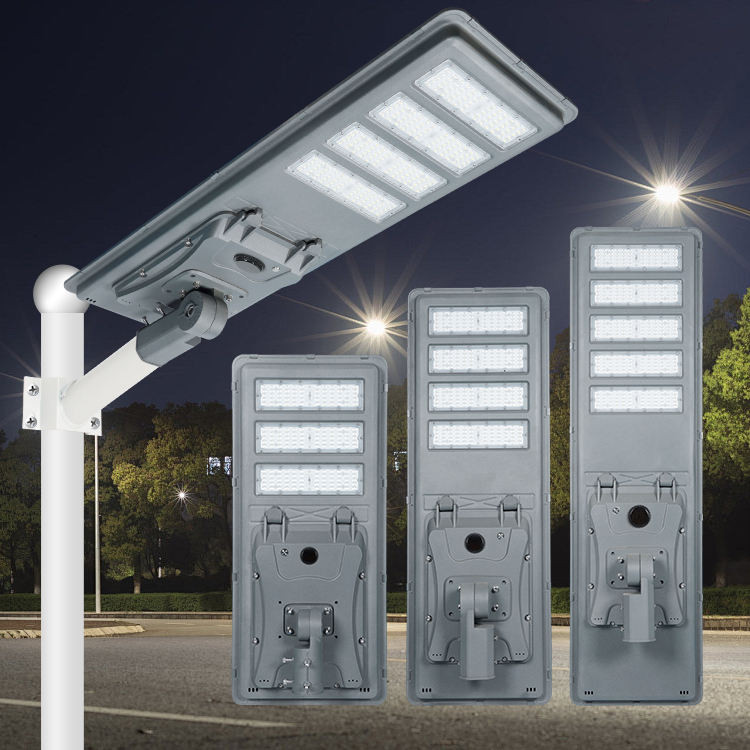

Available in 200W, 300W, 400W, and 500W configurations to match pole heights from 5 to 10 meters.
Tier-1 Battery Safety

Equipped with high-capacity LiFePO4 cells that offer 2,000+ deep cycles and stable performance in temperatures from -20 °C to +60 °C.
Bidding-Ready Documentation

We provide all necessary certifications (CE, RoHS, IP67) and technical data sheets required for government and commercial tenders.

Video

Solar Street Lights

Faq

What makes IP67 better than IP65 for street lighting?
+

IP67 provides total protection against dust and can withstand immersion in water up to 1 meter deep. This is critical for areas prone to flash floods or extreme tropical storms where standard IP65 lights might fail.
How does the aluminum housing affect battery life?
+

Heat is the enemy of lithium batteries. Our die-cast aluminum housing acts as a massive heat sink, keeping the internal battery compartment significantly cooler than plastic alternatives, thereby extending the battery's service life.
Can these lights be used in coastal areas with high salt spray?
+

Yes. The aviation-grade aluminum is finished with a specialized anti-corrosion powder coating, making it ideal for coastal highways and marine environments.
What is the typical lead time for a 500-unit wholesale order?
+

As a direct manufacturer, we typically fulfill large-scale orders within 15-20 days, depending on specific customization requirements (like logo or custom dimming profiles).
