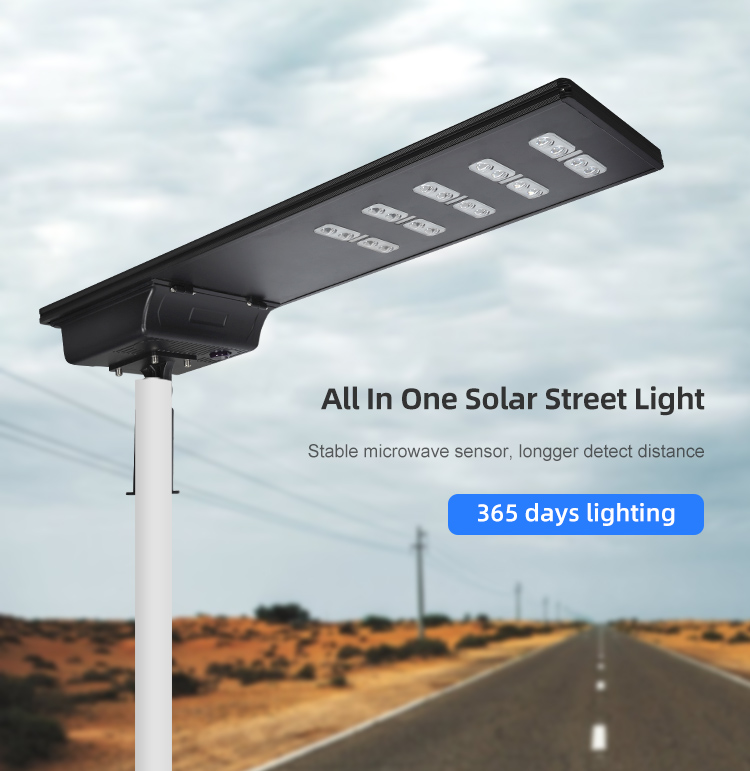

High-Efficacy Outdoor IP65 Solar LED Street Light – Integrated Battery & Smart Controller System

1. High-Lumen 3030 LED Engine: Equipped with professional-grade LED chips for maximum brightness and superior thermal stability.
2. Ultra-Durable LiFePO4 Storage: Integrated high-capacity battery pack supports 2,000+ deep cycles, ensuring a service life of 5-8 years.

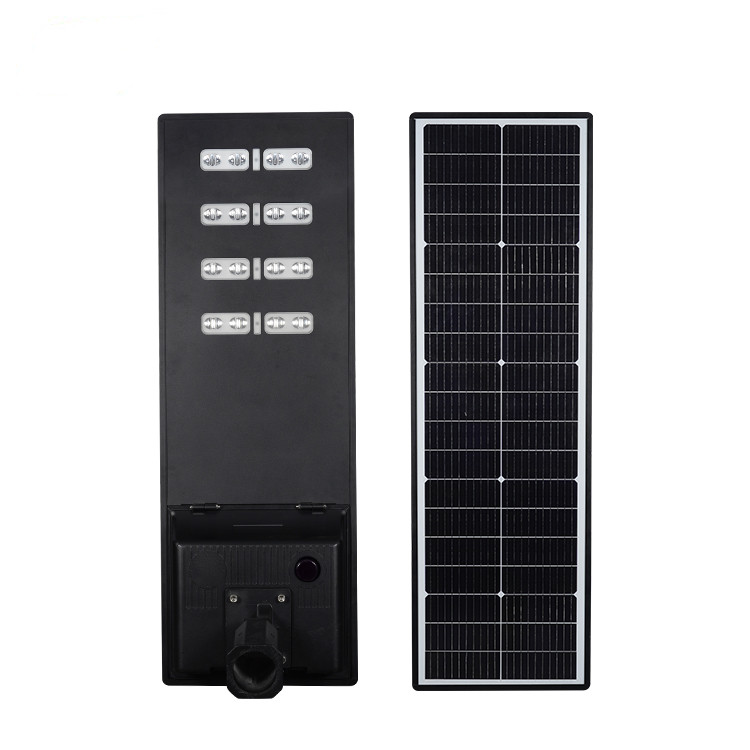

3. Optimized Solar Harvesting: High-conversion monocrystalline silicon panel ensures rapid charging even in partial sunlight.

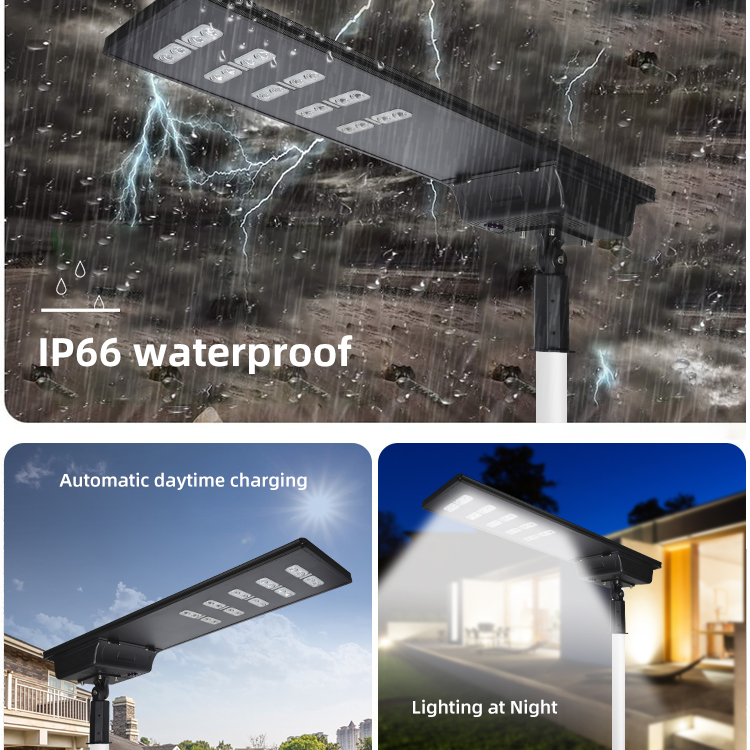

4. All-Weather Performance: IP65 rated waterproof housing with specialized anti-corrosion coating for harsh outdoor environments.
5. Direct Factory Support: Customizable wattage, IES file support, and professional project consultations available.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

1. Superior Optical Clarity.
By utilizing high-power 3030 LED chips, our street lights deliver a much higher lumen output per watt compared to standard 2835 models. This results in brighter roads with fewer fixtures required per kilometer.
2. Industrial-Grade Connections.
We use premium waterproof connectors and high-conductivity internal wiring to minimize energy loss. Every component is engineered for reliability in high-humidity and high-temperature regions.

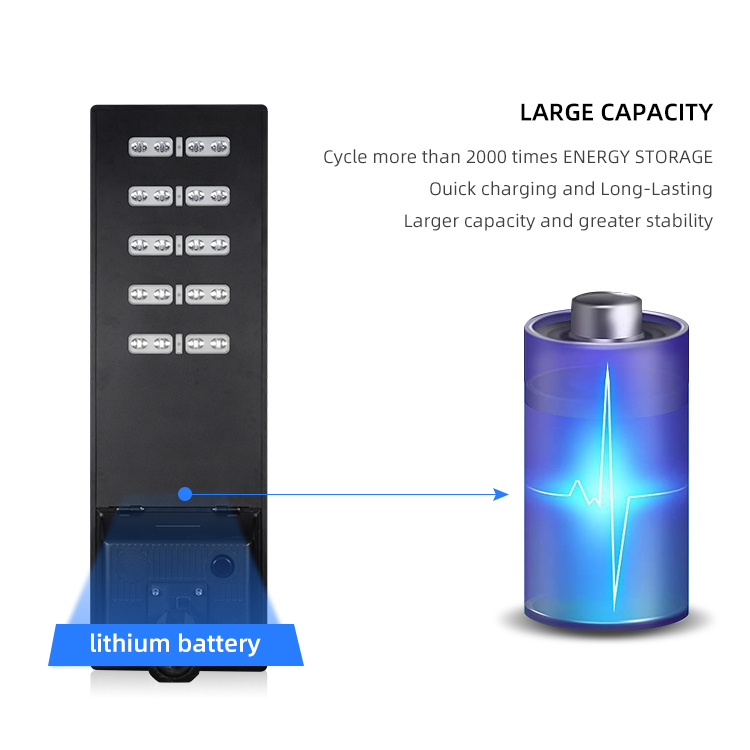

3. Long-Life Power Storage.
The heart of our system is a stable lithium iron phosphate (LiFePO4) battery. Paired with a smart BMS (Battery Management System), it ensures overcharge protection and maintains lighting for up to 3-5 cloudy days.
4. Fast Deployment.

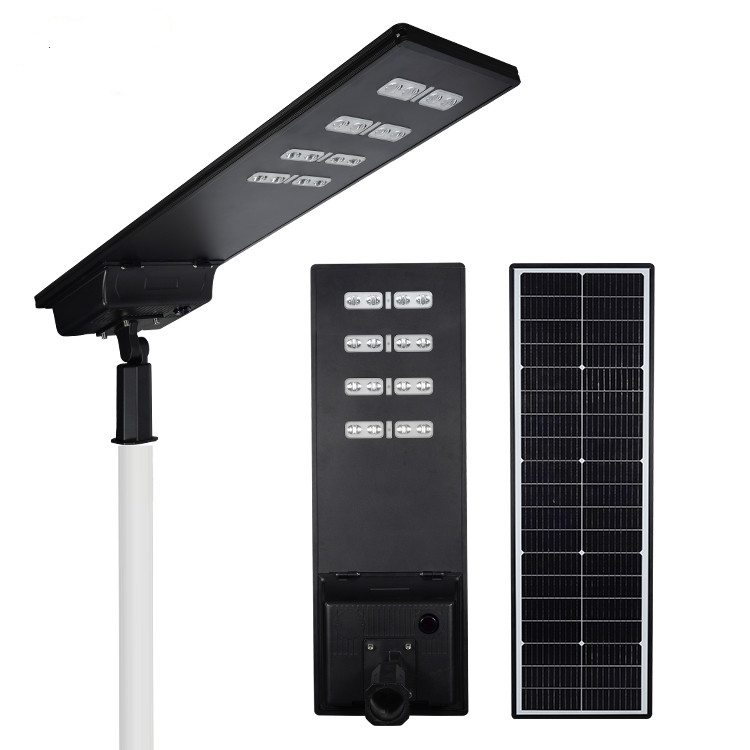

The adjustable mounting bracket is designed for both pole and wall installation. Its robust, vibration-resistant structure makes it ideal for areas prone to high winds or industrial traffic.

Specification

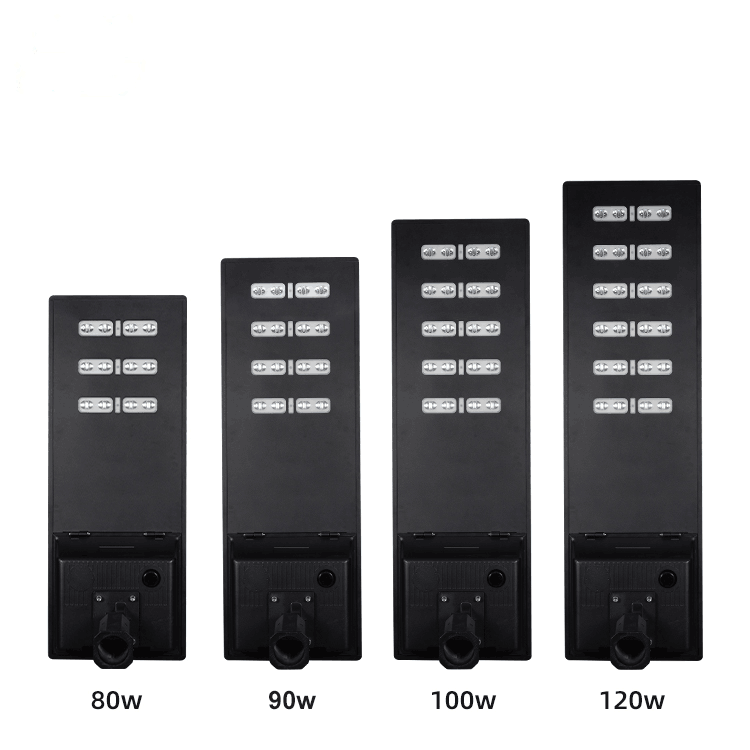

model	watt	size	Solar panels	Lithium battery
HP-KK80W	80W	1000420150mm	80W18V	LiFePO4 12.8V /24Ah
HP-KK90W	90W	1180420150mm	90W18V	LiFePO4 12.8V /36Ah
HP-KK100W	100W	*13804*20150mm	100W18V	LiFePO4 12.8V /48Ah
HP-KK120W	120W	1640420150mm	120W18V	LiFePO4 12.8V /64Ah

Optics

1. High lumen LED output, stable and uniform light distribution

2. Luminous efficiency up to 160 lm/W

3. Multiple color temperatures available:

– Warm white: 3000–3500K

– Natural white: 4000–4500K

– Pure white: 5000–5500K

– Cold white: 6000–6500K

4. Suitable for roads, squares, courtyards, parks and parking areas

Product Advantages

Lower Infrastructure Investment

No trenching, no cabling, and zero ongoing electricity costs for a significantly faster ROI.
Maintenance-Free Operation

The integrated design and long-life battery minimize the need for on-site technicians, reducing operational expenses.
Adaptive Dimming Technology

Smart sensors adjust light output based on real-time battery levels, ensuring light throughout the night in all seasons.
Global Certification Compliance

Manufactured to meet CE, RoHS, and IP65 standards, making it suitable for international municipal tenders.

Faq

What is the specific benefit of using 3030 LED chips over other types?
+

3030 chips offer better heat dissipation and a much longer lifespan with lower light decay. In a road environment, this means the brightness stays consistent for years without flickering or dimming.
Can these lights withstand coastal salt spray or desert heat?
+

Yes. Our IP65-rated housing undergoes specialized salt-spray testing. The aluminum alloy construction provides excellent heat dissipation, keeping the battery safe even in ambient temperatures up to 55°C.
How do we choose the right wattage (50W/100W/150W/200W) for our project?
+

This depends on the pole height and road width. Our engineers can provide a free Dialux lighting simulation based on your site plan to recommend the most cost-effective model.
What is the typical charging-to-lighting ratio?
+

Under standard sunlight, a 6-8 hour charge will provide 12 hours of light per night, with enough reserve power to last through 3 consecutive rainy days.
Do you offer replacement batteries if needed after many years?
+

Yes. Although our batteries are designed for long-term use, we maintain a stock of compatible modular battery kits for easy future maintenance or upgrades.
