LED outdoor street light high lumen die-cast aluminum housing waterproof suitable for roads and gardens

LED outdoor street light high lumen die-cast aluminum housing waterproof suitable for roads and gardens

High-Performance Die-Cast Aluminum LED Street Light – IP66 Waterproof, $150\text{--}180\text{ lm/W}$ Efficient Illumination for Municipal & Industrial Infrastructure.

1. Project-Grade Thermal Management: ADC12 die-cast aluminum housing with a streamlined fin design for superior heat dissipation and extended 50,000+ hour lifespan.
2. Industrial Efficiency: High-output SMD3030/5050 LED chips delivering maximum lumens with minimum energy consumption.
3. Rugged Protection: IP66 waterproof and IK08 impact resistance, built to withstand typhoons and harsh outdoor salt spray.
4. Intelligent Driver Technology: Equipped with high-PF, flicker-free drivers featuring 10 kV surge protection to ensure grid stability.

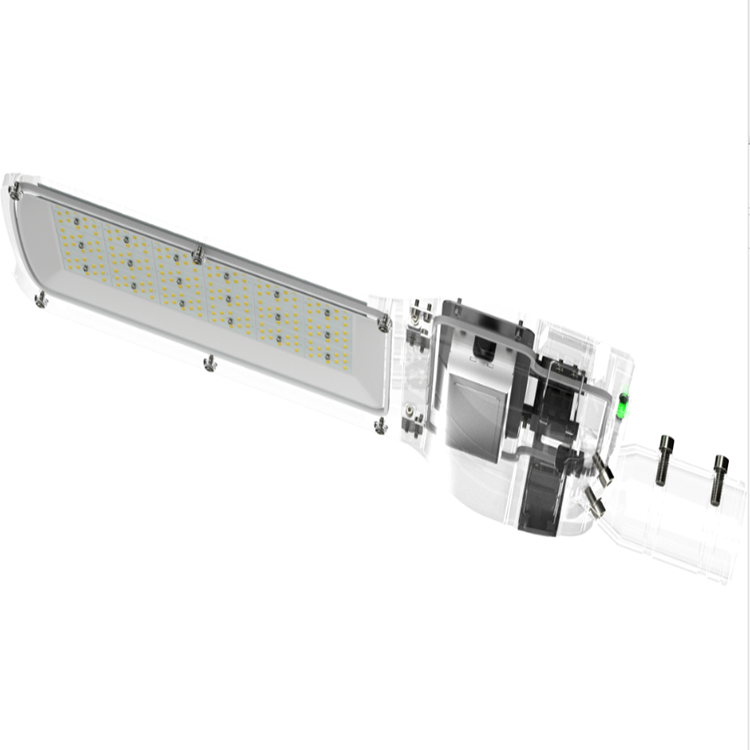

5. Easy Maintenance Design: Tool-free access to the driver compartment for rapid on-site service and reduced labor costs.

Inquire

Download

Description
Specification
Optics
Advantages
Faq

Description

1. Optimized Cooling Geometry.
The integrated vertical cooling fins create a "chimney effect," accelerating airflow to keep the junction temperature of LEDs significantly lower, which prevents lumen depreciation.
2. Bat-wing Light Distribution.
Our high-transmittance PC lenses are engineered to provide a wide, uniform light path, reducing the number of poles required per kilometer while meeting municipal safety lux levels.
3. Versatile Infrastructure Fit.

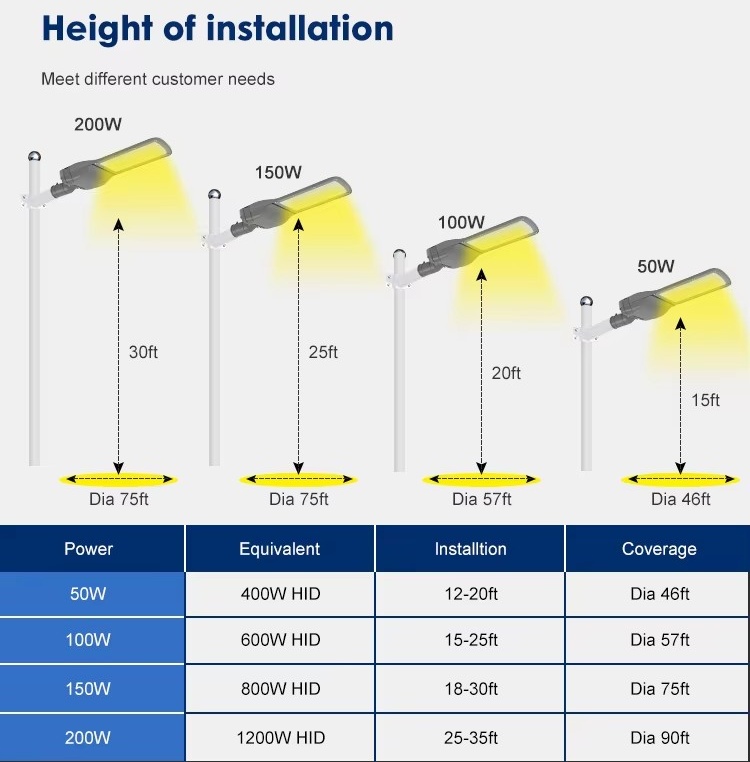

Designed for mounting heights from 6m to 12m, this series is the ideal choice for highways, urban arteries, and large industrial park perimeters.

Specification

Brand name	Hausolar LED Street light
Product number	HP-sd01
Product type	LED Street light
Power	50W	100W	150W	200W
Lamp body size	535210110	605265110	710265110	760280110
voltage	Ac 85-265V 50/60Hz
Materials	Die-cast aluminum
Quality guarantee	5Years
certificate	EMC/ CE/ RoHS/ CCC/FCC/ ISO

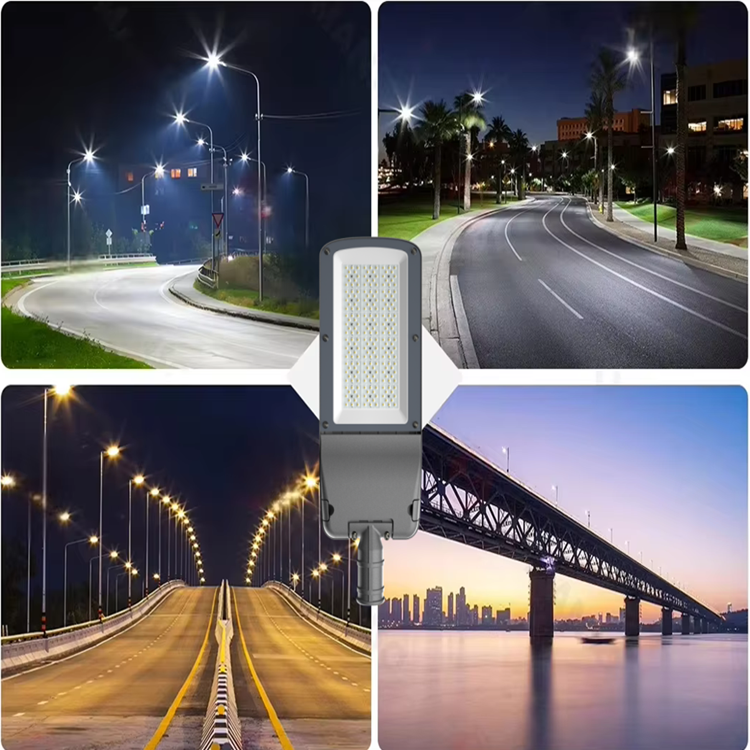

Apply	Highway/courtyard/road/wall/park/square/etc

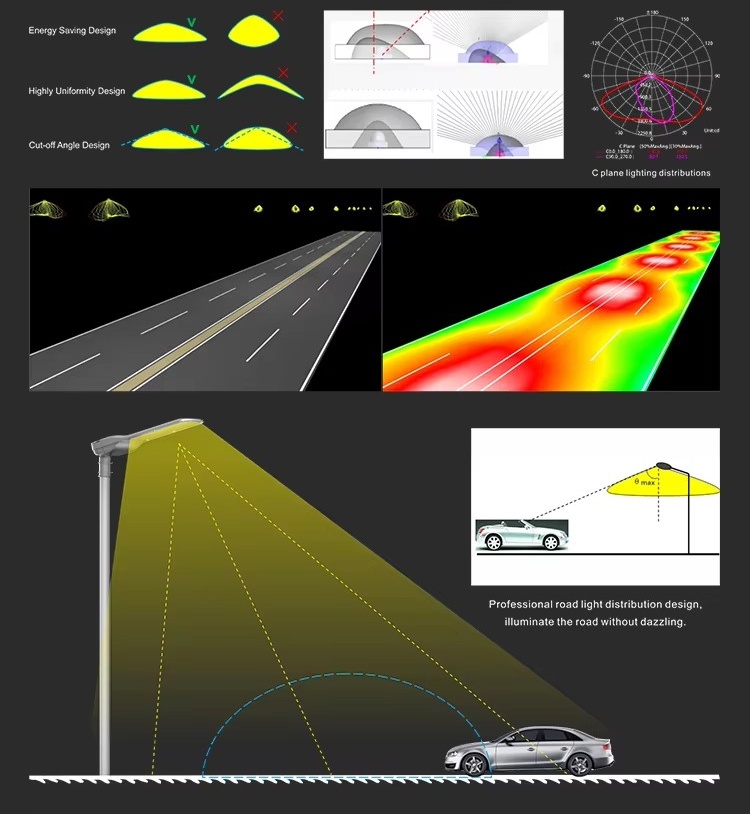

Optics

1. Luminous Efficacy: Up to 180 lm/W

2. Lens Type: Professional road lens, 140° wide beam angle

3. Light Distribution: Batwing / rectangular distribution for road lighting

4. CRI: ≥80

5. Color Temperature: 3000K / 4000K / 6000K

6. Lighting Design Support:

IES files available upon request

DIALux simulation support based on road width and pole height

Product Advantages

Reduced Operational Costs

High luminous efficacy cuts electricity bills by up to $60\%$ compared to traditional HPS/HID lamps.
Certified Reliability

CE, RoHS, and CB certified, ensuring compliance with international safety and quality standards for government tenders.
Future-Proof Smart Ready

Optional NEMA $3/5/7$-pin base for easy integration with smart city management systems and remote dimming.
Flexible OEM Capability

Customized power ratings (50W to 300W+), color temperatures (CCT), and housing colors to meet specific project aesthetics.

Faq

What brand of LED chips and drivers do you use for this series?
+

To ensure municipal-grade reliability, we typically use Philips/Lumileds or Osram chips combined with Sosen or MeanWell drivers, depending on your project requirements.
Can this light withstand heavy thunderstorms and power surges?
+

Yes. Each unit comes with a standard $10\text{kV}$ surge protection device (SPD) to protect the sensitive LED electronics from voltage spikes during lighting strikes.
Do you provide Dialux simulation services for roadway projects?
+

Absolutely. Our engineering team can provide full IES files and Dialux lighting reports to help you determine the optimal pole spacing and power selection for your tender.
Is the housing salt-spray resistant for coastal installations?
+

Yes, our die-cast aluminum undergoes a multi-stage powder coating process that passes a 500 - 1000 hour salt spray test, making it ideal for seaside environments.
