solar powered outdoor street lights

Professional Integrated Solar Street Lights for Public Infrastructure – High-Precision Optical Series

1. Engineered Photometrics: Precision-designed lens with a 140° wide-angle beam, optimized for maximizing pole spacing in municipal projects.
2. High-Efficiency Harvesting: Premium monocrystalline silicon panels maintain superior charging performance even in cloudy conditions.
3. Military-Grade Storage: Features high-density LiFePO4 batteries offering 3,000+ deep cycles and extreme temperature tolerance.
4. Smart Energy Management: Built-in MPPT/PWM controller with intelligent dimming ensures 3-5 days of backup autonomy.
5. Tender Support: IES files, full photometric data, and material certifications available for engineering submittals.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

1. Maximize Your ROI with Clean Power.
Dust and debris can reduce solar yield by up to 30%. Our streamlined, tilt-optimized design facilitates natural self-cleaning during rainfall, ensuring your project achieves peak energy efficiency without frequent manual labor.
2. Robust Thermal Engineering.
The high-strength aluminum alloy housing is designed with vertical convection fins. This superior heat dissipation protects the LED engine and battery, extending the total system lifespan to over 10 years in tropical climates.

Specification

model	watt	size	Solar panels	Lithium battery
HP-40W	40W	54929467.5mm	30W18V	256WH
HP-60W	60W	78936763.5mm	50W18V	320WH
HP-80W	80W	100043083.5mm	75W18V	384WH
HP-100W	100W	11955058305mm	110W18V	640WH

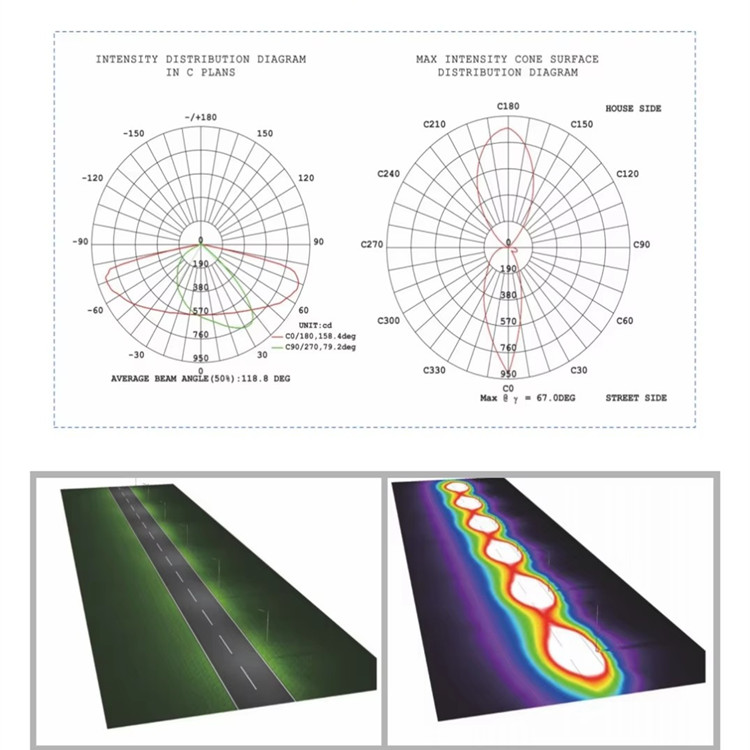

Optics

Data-Driven Lighting Solutions.

1. Beam Angle: 140° longitudinal distribution for uniform road coverage.

2. Zero Light Pollution: Shielded optical design minimizes upward light waste and glare, ensuring compliance with dark-sky initiatives.

3. Lumen Efficacy: High-intensity LED chips delivering professional-grade lux levels for residential and industrial roads.

Product Advantages

Fast & Cost-Effective Installation

The integrated all-in-one design eliminates the need for trenching and complicated wiring, reducing labor costs by 70%.
Long-Cycle Battery Life

New-generation lithium iron phosphate cells ensure stable performance for years, reducing the total cost of ownership.
Adaptive Intelligence

Integrated motion sensors and time-profile dimming allow the light to adjust output based on real-time needs.
Weatherproof Durability

IP65-rated sealing and corrosion-resistant coating make this fixture ideal for harsh coastal and humid environments.

Video

Solar Street Lights

Faq

Can you provide IES files for our Dialux lighting design?
+

Yes. We provide full IES photometric files for all our integrated models. Our engineering team can also provide a free Dialux simulation to help you determine the optimal pole height and spacing for your specific road project.
How does the light perform during long rainy or cloudy seasons?
+

The system is programmed with a Smart Energy Saving mode. When the battery is low, the intelligent controller adjusts the brightness to ensure the light stays functional for up to 5 consecutive rainy days.
Is the installation bracket compatible with different pole diameters?
+

Our standard slip-fitter is designed to fit poles from 60mm to 80mm. We can also provide customized mounting brackets for square poles or wall-mount applications upon request.
What is the lead time for a bulk order of 500+ units?
+

As a direct manufacturer, we maintain a stable supply chain. Typical lead time for a 500-unit municipal order is 15–20 days, depending on specific customization requirements.
Do you offer a warranty for government-funded projects?
+

We offer a standard 3 to 5-year comprehensive warranty. We also provide long-term spare parts support to ensure the lighting infrastructure remains operational long after the project completion.
