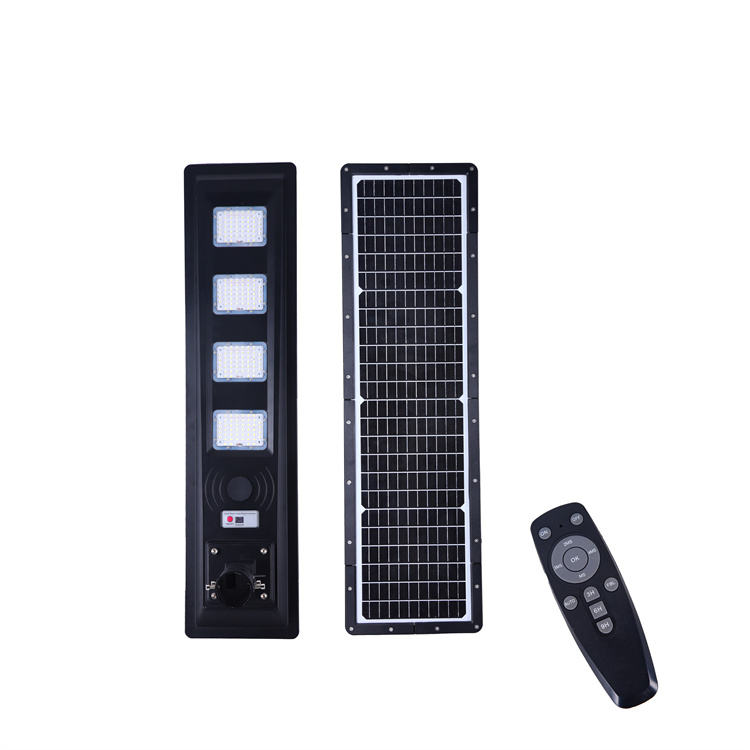

beautiful integrated solar street light

High-Aesthetic Integrated Solar Street Light – Professional All-in-One LED Solution with Multi-Angle Installation for Urban Infrastructure.

1. Adaptable Photovoltaic Yield: The multi-angle adjustable bracket ensures maximum solar absorption in any latitude, increasing energy harvesting by up to 25%.
2. Architectural Grade Design: A sleek, integrated aluminum profile that seamlessly blends into modern urban landscapes and high-end residential areas.
3. Industrial-Leading Efficiency: Equipped with high-output SMD3030 chips and a 21%+ conversion rate monocrystalline panel.
4. Smart Autonomy Management: Intelligent MPPT controller maintains consistent lighting for 3 - 5 rainy days, preventing blackout risks.
5. Certified Durability: IP65 waterproof rating and corrosion-resistant finish, engineered for a 10-year+ service life in coastal and tropical climates.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

1. Precision Alignment.
Our proprietary adjustable mounting system allows installers to optimize both the solar panel's orientation and the LED's tilt independently. This eliminates the "sub-optimal charging" issues common in fixed-mount integrated lights.
2. Uncompromised Lifespan.
Featuring Grade-A LiFePO4 battery cells with an advanced Battery Management System (BMS), ensuring over 2,000 cycles and stable performance under extreme thermal stress (-20 °C to +60 °C).
3. Uniform Road Safety.
The professional Bat-wing light distribution reduces glare and ensures zero dark spots, meeting strict municipal illumination standards for roadway safety.

Specification

Model

HP-S013

Power

200W

300W

400W

500W

Size(mm)

700*350*150

887*400*280

1160*400*280

1435*400*280

Light Source

SMD3030 100pcs

SMD3030 180pcs

SMD3030 240pcs

SMD3030 300pcs

Module

2 Module

3 Module

4 Module

5 Module

Solar Panel Power

5V 45W

5V 70W

5V 90W

5V 110W

Capacity

145wh

208wh

320wh

400wh

Installation height

6-7m

9-10m

Luminous Flux(LM)

150-160LM/W

Service Life

50000h

Material

LiFePo4 Battery

Charging Time

full sunshine 6-8h

Temperature

-20℃～60℃

Rainy days

3-7 days

Material

Aluminum

Solar Panel

Hight Efficiency Solarworld Monocrystalline Silicon

Optics

1. High-lumen LED output: 160–170 lm/W

2. Wide beam angle up to 140° for road and area lighting

3. Uniform light distribution with low glare

4. Optional microwave motion sensor and light control

Product Advantages

Lower Total Cost of Ownership (TCO)

No trenching or cabling required. The high durability of aluminum and LFP batteries significantly reduces post-warranty maintenance expenses.
Fast Project Turnaround

The All-in-One design allows for rapid deployment—up to 100 units can be installed per day by a small crew, meeting tight project deadlines.
Sustainable Branding

Helps developers and municipalities achieve "Green Energy" certifications and carbon-neutral goals with zero electricity costs.
Full Technical Support

We offer IES files for Dialux simulations and customized dimming profiles to match your specific project requirements.

Video

Solar Street Lights

Faq

Why is the adjustable bracket critical for project success?
+

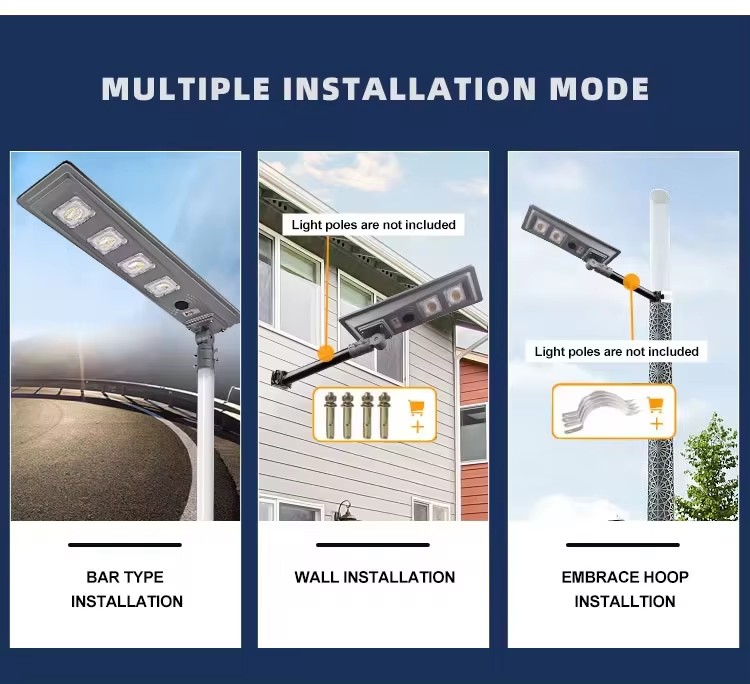

In many projects, poles are not perfectly oriented toward the sun. Our 360° adjustable bracket allows you to correct the panel direction without changing the pole's position, ensuring the battery always receives maximum charge.
How does the light perform in areas with low sunlight?
+

Thanks to the high-efficiency monocrystalline panel and smart MPPT controller, the system can still generate power in low-light conditions. The adaptive dimming sensor further ensures the light stays on even during extended periods of rain.
Do you offer customized OEM services for large-scale tenders?
+

Yes. We support full OEM/ODM services, including logo branding, color temperature customization (3000K-6500K), and specialized sensor programming to meet local government standards.
Is the battery replaceable after its 8-10 year lifespan?
+

Yes. Although integrated, our design allows for easy access to the battery compartment, enabling simple replacement without needing to replace the entire fixture.
