Hot-dip galvanized solar street lights

Heavy-Duty Hot-Dip Galvanized Solar Street Lighting Systems – Full Project Solutions

1. Complete System Integration: A fully synchronized solution including high-efficiency LED fixtures, solar modules, and certified galvanized poles.
2. All-Weather Durability: Hot-dip galvanized coating ensures 20+ years of rust protection in high-salinity and humid environments.
3. High-Stability Structure: Engineered to withstand extreme wind loads (up to Level 12), ensuring safety for highway and municipal infrastructure.
4. Optimized Energy Yield: Features high-conversion monocrystalline panels and intelligent MPPT controllers for maximum power autonomy.
5. Engineering Support: Full CAD designs, wind-load calculations, and IES files provided for every project.

Inquire

Download

Description
Specification
Optics
Advantages
Video
Faq

Description

Reliable Illumination for Modern Infrastructure.
Our galvanized solar lighting systems are designed to deliver consistent, high-intensity light output from dusk till dawn. The integration of advanced LED optics ensures wide road coverage with zero glare, enhancing nighttime safety for drivers and pedestrians alike.
Precision-Engineered Support Structures.
We utilize premium Q235B steel treated with deep hot-dip galvanization. Every bracket and pole is precision-welded to support large-format solar panels, providing a stable energy platform that resists vibration and structural fatigue over decades.

Specification

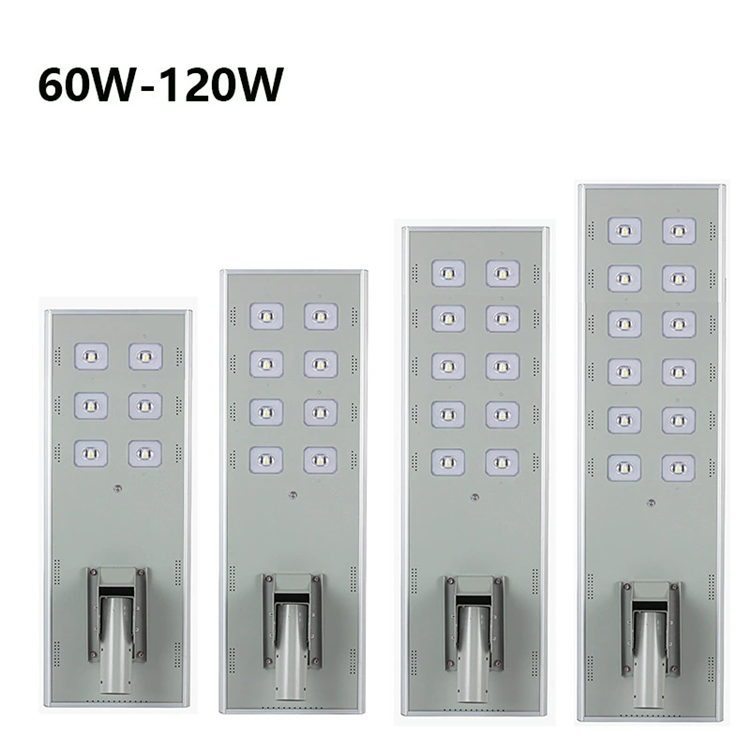

Model

HP-S018

Power

60W

80W

100W

120W

Size(mm)

700*350*150

887*400*280

1160*400*280

1435*400*280

Light Source

SMD3030 100pcs

SMD3030 180pcs

SMD3030 240pcs

SMD3030 300pcs

Module

2 Module

3 Module

4 Module

5 Module

Solar Panel Power

5V 45W

5V 70W

5V 90W

5V 110W

Capacity

145wh

208wh

320wh

400wh

Installation height

6-7m

9-10m

Luminous Flux(LM)

150-160LM/W

Service Life

50000h

Material

LiFePo4 Battery

Charging Time

full sunshine 6-8h

Temperature

-20℃～60℃

Rainy days

3-7 days

Material

Aluminum

Solar Panel

Hight Efficiency Solarworld Monocrystalline Silicon

Optics

1. LED Chips: 3030 / 5050 high-brightness LED

2. Luminous Efficiency: Up to 170 lm/W

3. Beam Angle: Wide road lighting distribution

4. Adjustable Bracket: Up to 140° angle adjustment

5. Lighting Effect: Uniform illumination, low glare, suitable for main roads and secondary roads

Product Advantages

20-Year Anti-Corrosion Life

The deep-zinc galvanization process provides maintenance-free service in harsh coastal or industrial zones.
High-Stability Mounting

Our reinforced bracket designs ensure solar panels stay secure during severe storms and high-wind events.
Maximum Energy Autonomy

High-capacity lithium storage ensures the system stays lit for 3-5 consecutive rainy days.
Ready for Tenders

We provide comprehensive technical documentation, including material test reports and structural certifications, to support your bidding process.

Video

Solar Street Lights

Faq

What is the standard thickness of the galvanization on your poles and brackets?
+

We adhere to international ISO standards, typically providing a hot-dip galvanization thickness of 85μm or greater to ensure a lifespan of over 20 years without rust.
Can this system be customized for regions with frequent typhoons or hurricanes?
+

Yes. We can adjust the steel wall thickness and bracket reinforcement based on your local wind load data. We provide professional wind-load calculations to ensure the system's stability.
Do you provide the anchor bolts and foundation templates for the poles?
+

Absolutely. Every system includes heavy-duty J-bolts and a metal positioning template to ensure a perfect fit and easy installation on-site.
How do you manage the shipping of long poles and large solar panels?
+

We specialize in telescopic/slip-joint pole designs that allow 9m or 12m poles to fit into standard shipping containers, significantly reducing your international freight costs.
Can I get a full Dialux simulation before placing a bulk order?
+

Yes. For project-based inquiries, we offer free Dialux lighting simulations and IES reports to ensure the system meets your specific road lux requirements.
